How To Optimize Your Vibratory Finishing Machine for Enhanced Efficiency

Vibratory finishing machines, or vibratory tumblers, are indispensable tools in modern manufacturing processes, particularly for mass finishing and surface enhancement. These machines are designed to smooth, polish, deburr, or clean metal parts and other materials, all while maintaining high efficiency and throughput. However, the performance and efficiency of a vibratory finishing machine depend on several factors, ranging from machine setup to operational variables. This article explores various techniques and tips to optimize your vibratory finishing machine for enhanced efficiency, ensuring better results, reduced downtime, and cost savings.

Understanding the Basics of Vibratory Finishing

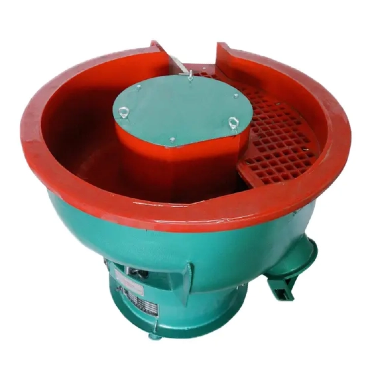

Before diving into optimization techniques, it’s important to first understand how a vibratory finishing machine works. A vibratory finishing machine consists of a vibrating bowl, barrel, or tub that contains both the workpieces (metal parts, plastic, or other materials) and abrasive media. The machine’s vibratory motion causes the parts and media to tumble and rub against each other, smoothing and polishing the surfaces of the parts while removing burrs and imperfections.

Typically, vibratory finishing can be used for a variety of applications, including:

• Deburring: Removing sharp edges and burrs from metal parts.

• Polishing: Achieving a smooth, shiny surface finish on metal, plastic, or ceramic parts.

• Cleaning: Removing dirt, oils, or oxidation from parts.

• Radiusing: Rounding off edges for aesthetic or functional purposes.

The goal of optimization is to improve the efficiency of the process without compromising the quality of the finish. Efficiency in vibratory finishing can be measured in several ways, including faster cycle times, better part quality, reduced energy consumption, and longer equipment life.

Select the Right Media for the Job

The abrasive media used in vibratory finishing machines plays a significant role in the outcome of the process. Media is available in various materials, such as ceramic, plastic, steel, and walnut shells, and each type serves a different purpose. Selecting the right media for your application is essential for optimizing machine performance.

• Ceramic Media: Ceramic media is the most common type used in vibratory finishing. It’s ideal for polishing and deburring metal parts. Ceramic media can be used for a wide range of applications, from aggressive cutting to fine polishing.

• Plastic Media: Plastic media is generally gentler than ceramic and is used for parts that require a softer touch or delicate finishing. It is suitable for polishing parts made of soft metals, such as aluminum or brass.

• Steel Media: Steel media is excellent for cleaning, burnishing, and deburring hard metals. It provides a high degree of cutting action and is often used for heavier-duty applications.

• Organic Media: Organic media, such as walnut shells or corn cob, is often used for cleaning and polishing delicate parts. It’s non-abrasive and safe for softer materials.

Choosing the right media based on the material of the workpieces and the desired finish will not only improve the quality of the results but also reduce unnecessary wear and tear on the equipment, leading to enhanced efficiency.

Optimize Machine Speed and Amplitude

The speed and amplitude of the vibratory motion are crucial for achieving efficient finishing. The vibration frequency and the amplitude (the extent of the vibration movement) determine how aggressively the media and parts interact, impacting both the cycle time and the quality of the finish.

• Speed: If the vibration speed is too slow, the process will take longer and may not achieve the desired finish. On the other hand, excessively high speeds can cause excessive wear on both the parts and the media. Finding the optimal vibration speed is key. Typically, a higher speed improves the efficiency of the process but should be balanced to avoid over-stressing the machine and parts.

• Amplitude: The amplitude, or the range of motion, affects how vigorously the parts tumble and interact with the abrasive media. A higher amplitude generally means faster processing times, but too much amplitude can lead to undesirable outcomes such as surface damage or over-polishing. Adjusting the amplitude to fit the application ensures that parts receive the appropriate amount of treatment.

To optimize the vibratory finishing machine, it is important to calibrate both speed and amplitude based on the type of part being processed, the media used, and the desired surface finish.

Control the Process Time

Cycle time is one of the key factors in improving the efficiency of a vibratory finishing machine. While increasing cycle time may produce a more polished result, it can also lead to unnecessary wear on both the media and parts, as well as wasted energy. On the flip side, insufficient processing time may not fully remove imperfections or achieve the desired finish.

To optimize process time, start by running test batches and monitoring the results. It’s important to find the minimum amount of time required to achieve the desired quality. Consider the following tips:

• Use a timer: Many vibratory finishing machines come with a timer that helps you keep track of processing times. This ensures that parts are removed once the desired result is achieved, preventing over-finishing and material loss.

• Automate the process: Consider installing automated monitoring systems that can detect when the parts are ready for the next stage. This reduces human error and increases consistency.

By finding the right balance in process time, you can enhance both the efficiency and the consistency of your finishing operation.

Optimize the Load Capacity

The load capacity refers to how many parts can be processed in one cycle. Overloading the machine can reduce its efficiency, as parts will not be able to move freely and interact with the media effectively. On the other hand, underloading the machine wastes energy and time.

• Avoid overloading: It’s essential to load the machine with the right amount of parts to allow free movement and ensure proper tumbling of both parts and media. Each machine has a specified capacity, and exceeding this limit can cause uneven processing or damage to the parts.

• Maximize the load: Conversely, underloading the machine means that you’re not utilizing its full potential. Ideally, the machine should be filled with enough parts and media to ensure a consistent and efficient operation without straining the motor or other components.

By adhering to the manufacturer’s recommended load capacity, you can ensure that the machine operates at peak efficiency.

Use Proper Compounds and Liquids

In many vibratory finishing processes, the use of compounds and liquids can significantly affect the outcome. These liquids, often called finishing compounds, serve various purposes, such as lubricating the parts, controlling temperature, preventing rust, and aiding in the polishing process.

• Lubrication: Using the right lubricant helps reduce friction, which not only enhances the polishing effect but also reduces wear on the machine and media.

• Temperature control: Some finishing compounds help control the temperature of the process, preventing overheating, which can damage parts or degrade the media too quickly.

• Rust prevention: Certain compounds can create a protective layer on the parts, preventing rust and oxidation from forming during the finishing process.

The right choice of compound, in combination with the right media and machine settings, can greatly enhance both efficiency and the quality of the finish.

Regular Maintenance and Monitoring

To optimize your vibratory finishing machine for maximum efficiency, regular maintenance is essential. Proper maintenance ensures the machine operates smoothly, minimizing downtime and preventing costly repairs.

• Cleaning: Regularly clean both the machine and the media to remove any debris or buildup that could impede the machine's movement. Dirty media can also lead to ineffective polishing and inconsistent results.

• Lubrication: Lubricating moving parts, such as bearings and motors, ensures that the machine runs efficiently without unnecessary friction or wear.

• Inspection: Periodically check for signs of wear on the parts of the machine, including the bowl liner, springs, and motor. Promptly addressing any wear or damage will extend the life of the equipment and prevent production delays.

Monitor Part and Media Wear

Over time, both parts and abrasive media undergo wear and tear. Monitoring the wear patterns on parts and media ensures that you can replace or replenish them as needed. For example, worn-out media may become less effective, requiring you to increase cycle time or speed to achieve the same result.

Additionally, regularly check the condition of the parts being processed. If certain parts are not holding up well under the finishing process, consider adjusting machine settings or using softer media to avoid excessive wear.

Conclusion

Vibratory finishing machines play a crucial role in metalworking and manufacturing, providing an efficient and reliable method for achieving smooth, polished, and deburred parts. By optimizing key factors such as media selection, machine settings, processing time, load capacity, and maintenance, manufacturers can significantly improve the efficiency of their vibratory finishing machines. This leads to faster production times, reduced energy costs, and higher-quality results, making vibratory polishing an essential part of modern manufacturing.

Regular monitoring and maintenance ensure that the machine runs optimally, and understanding the specific needs of your parts will help you achieve the best results. With the right approach, vibratory finishing machines can significantly enhance both the efficiency and quality of your manufacturing operations.
