Views: 0 Author: Site Editor Publish Time: 2026-05-18 Origin: Site
Two buyers can order the same vibratory grinding machine model and get completely different results — one finishes parts to a mirror polish, another buyer reported that, even after polishing, there were still burrs that couldn’t be completely removed and the surface wasn’t smooth enough. The difference isn't the machine. It's the match between media choices, part material, and target surface condition.
For North American buyers sourcing finishing equipment, this mismatch is the most common reason for costly re-trials, extended cycle times, and rework. You buy a machine that technically fits your throughput — but it wasn't configured for your alloy, your target Ra value, or your media chemistry. The machine runs, but the finish doesn't meet spec.
This guide fixes that. We walk you through how to select a vibratory finishing machine based on two variables that are fully in your control: your part material and your target surface finish. No guesswork. Just a practical parameter matrix you can use in your next procurement conversation.
Before selecting a machine, you need to know what "good enough" actually means for your application. Surface finish targets in mass finishing fall into four broad categories — each with a different Ra range and a different machine specification profile:
Deburring / Edge Radiusing — Remove flash, burrs, and machining marks. Target Ra: 1.5–3.2 μm. Primary concern: consistent edge rounding, no part-on-part damage.
Pre-plate / Pre-coating Preparation — Clean and micro-smooth surfaces for adhesion in electroplating, powder coating, or anodizing. Target Ra: 0.8–1.6 μm. Primary concern: surface cleanliness and uniform Ra across batch.
Functional Polishing — Achieve a consistent, repeatable surface for mating or sealing parts. Target Ra: 0.4–0.8 μm. Primary concern: surface consistency and low variance within a batch.
Cosmetic / Mirror Finish — Decorative surfaces on consumer goods, automotive trim, or architectural components. Target Ra: 0.1–0.4 μm. Primary concern: low Ra, minimal surface scratches, no contamination marks.
If you don't know your target Ra, ask your customer or your internal quality team. For deburring applications, a visual standard (reference parts with approved finish) works just as well as a Ra measurement. The key is to lock in your target before you start evaluating machines — not after you've bought one.
Different materials behave very differently under vibratory finishing. Hardness, ductility, thermal properties, and chemical reactivity all influence which machine configuration will deliver your target finish efficiently. Here is a practical reference matrix:
Part Material | Hardness Range | Recommended Frequency | Best Media Type | Typical Cycle Time |
|---|---|---|---|---|

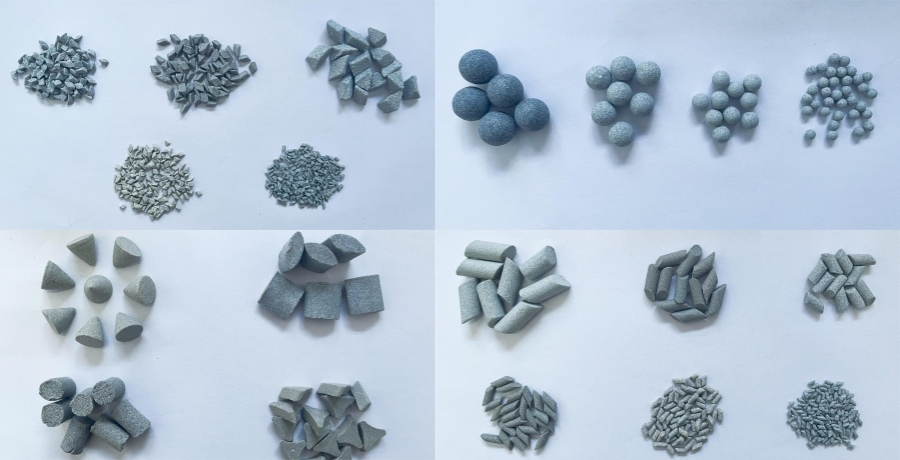

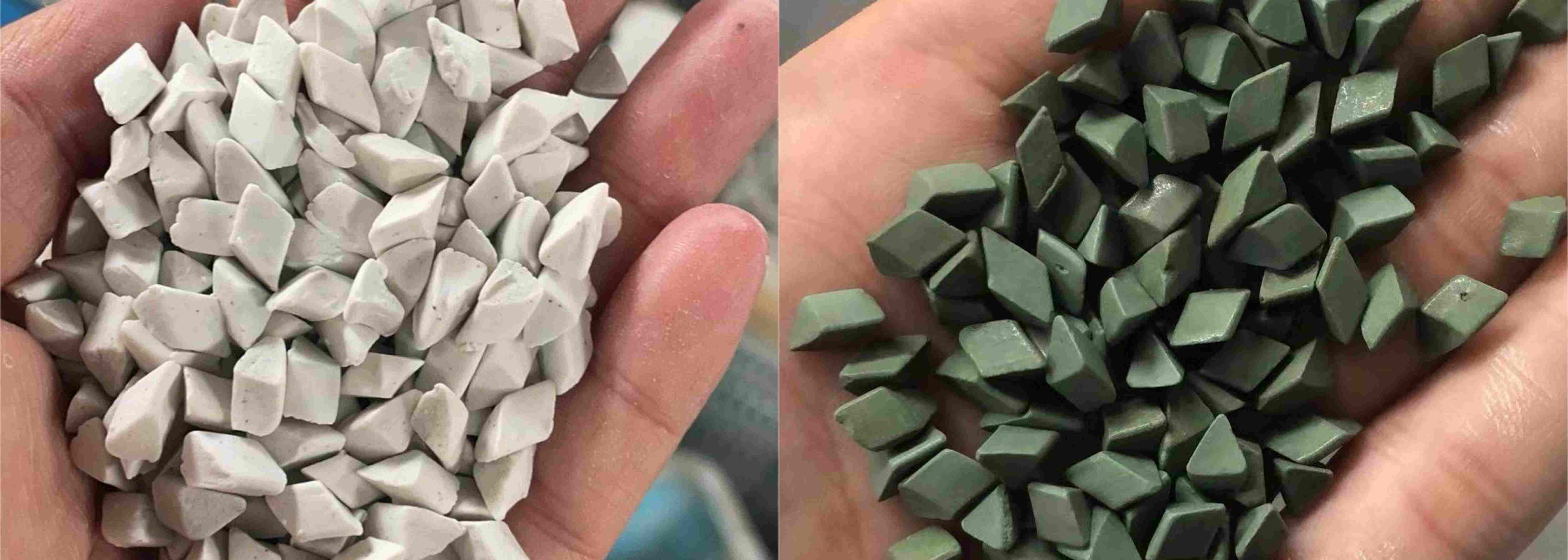

Carbon Steel | HRc 25–55 | 50–60 Hz / High amplitude | Angular ceramic (Al₂O₃) | 30–90 min |

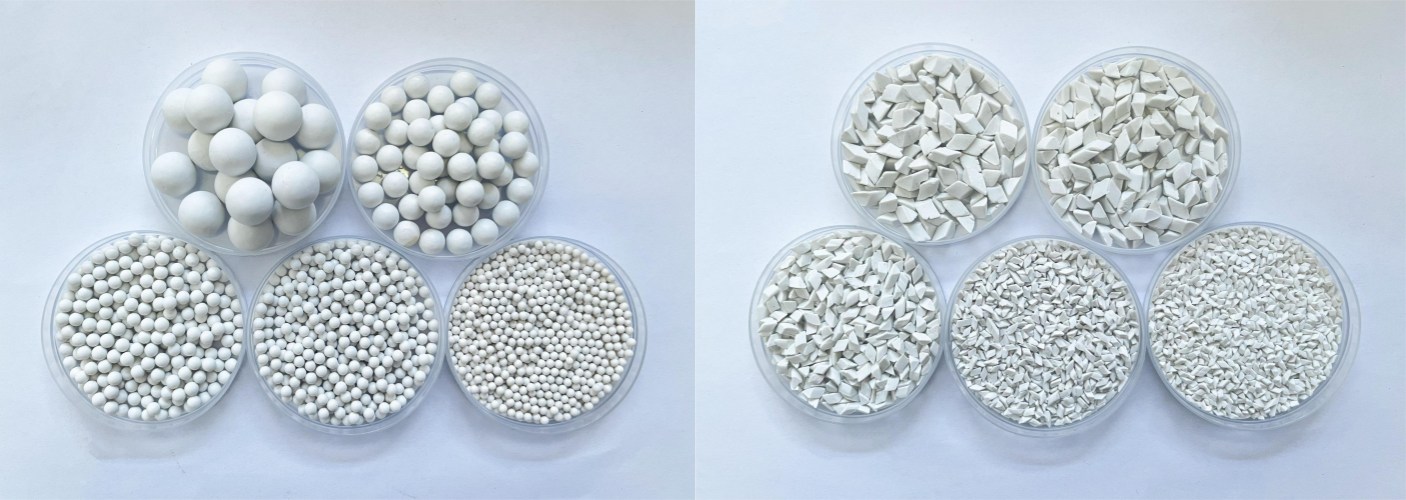

Stainless Steel (300/400 series) | HRc 35–60 | 50–60 Hz / Medium-high amplitude | Ceramic (aluminum oxide or silicon carbide) | 45–120 min |

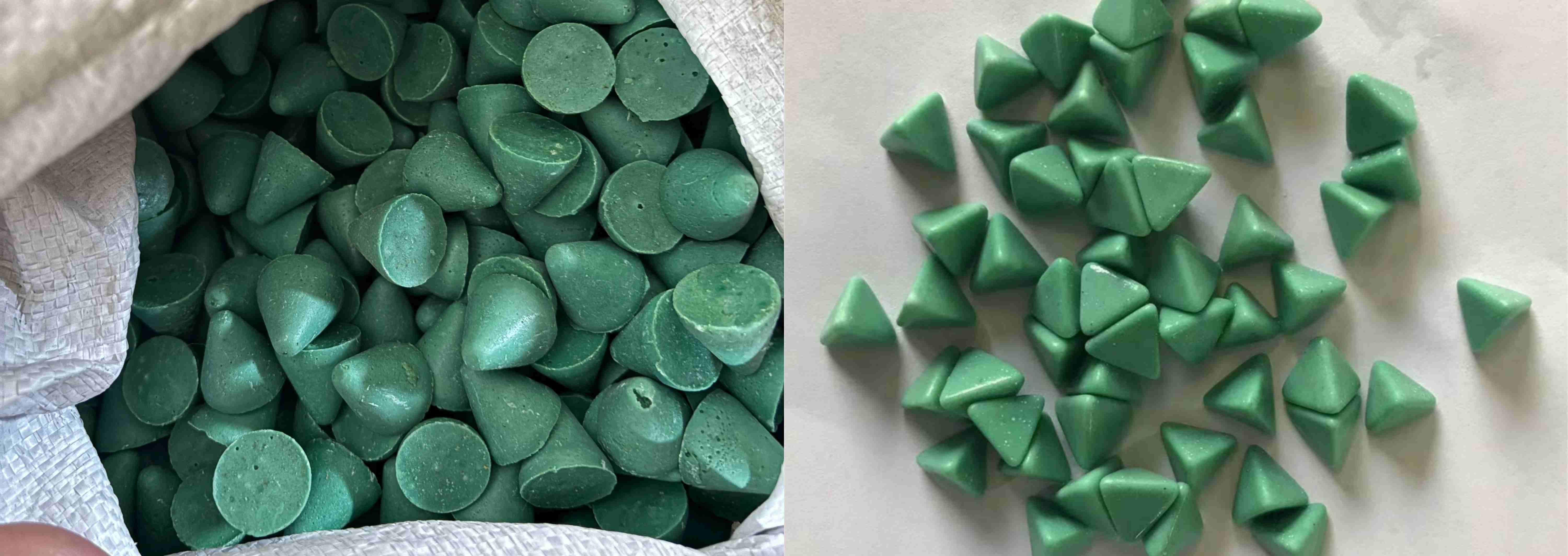

Aluminum / Aluminum Alloys | HRb 20–75 | 50–60 Hz / Low-medium amplitude | Plastic media (polyurethane) or corn cob for fine finish | 30–90 min (avoid aggressive ceramic to prevent embedding) |
Brass / Copper Alloys | HRb 40–90 | 50 Hz / Low-medium amplitude | Spherical plastic or walnut shell; avoid dark media that stains | 30–60 min |
Cast Iron / Ductile Iron | HRc 20–50 | 50–60 Hz / High amplitude | Angular ceramic; heavy pre-wash required for sand/scale removal | 60–180 min (scale/sand adds significant time) |
Titanium Alloys | HRc 30–70 | 50 Hz / Low-medium amplitude | Plastic media or steel balls; avoid contamination of surface | 60–180 min (Ti is gummy, cycles are longer) |
Cast Aluminum (A356, etc.) | HRb 30–60 | 50 Hz / Low-medium amplitude | Plastic media; ceramic only if heavy burrs present | 45–120 min (porosity in castings holds media residue — post-process cleaning is critical) |
Zinc Die Castings | HRb 70–90 | 50 Hz / Low amplitude | Plastic media; water-based compound only (oil-based causes staining) | 30–60 min |
Key takeaway: Harder materials need higher amplitude and more aggressive media. Softer and more ductile materials need lower amplitude and non-abrasive or mild media to avoid surface embedding, smearing, or deformation. If you run aluminum with ceramic media at high amplitude, you'll get fast stock removal — but also surface contamination from media fragments embedding into the soft metal surface.
For the same material, different finish targets require different machine settings. Here is how target finish drives parameter selection:
Deburring prioritizes speed and edge cleanliness. Use high amplitude, angular ceramic media, and a shorter media life cycle (replace more frequently to maintain cutting aggressiveness). Look for machines with variable amplitude control so you can run deburring in one mode and switch to polishing in the same unit without changing hardware.
The goal is not stock removal — it is creating a clean, uniform surface for coating adhesion. Reduce amplitude, switch to spherical plastic or fine ceramic media, and add a water-based compound with rust inhibitors for ferrous metals. Monitor Ra with a profilometer in early production runs to establish a process window. Batch-to-batch Ra variance should be within ±0.2 μm for plating-grade finishes.

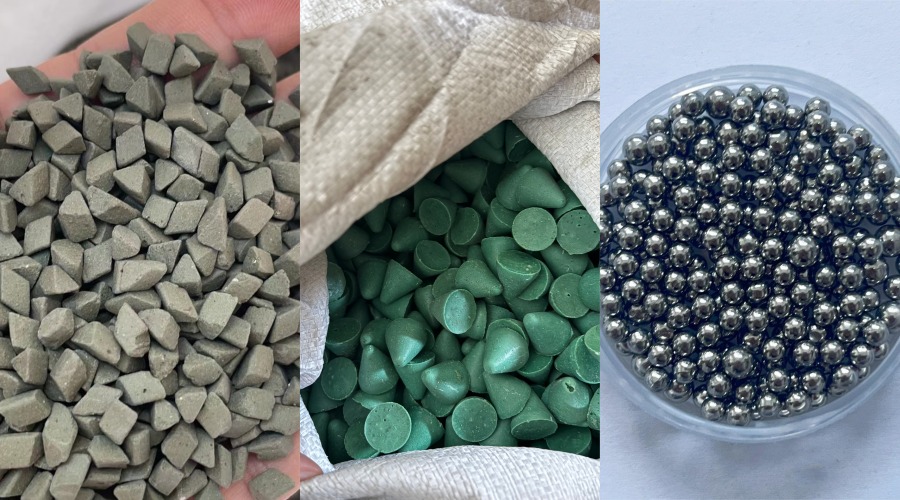

Achieving Ra below 0.4 μm requires a multi-stage process: deburr first, then transition through progressively finer media (often three stages: coarse ceramic → fine ceramic → plastic pre-polish → steel burnishing). Dual-frequency machines or machines with programmable speed ramps are ideal for this workflow — you run the first stage at high frequency for stock removal, then switch to low frequency for burnishing. Budget 2–4 hours total cycle time for a true mirror finish on steel or stainless.
When evaluating a vibration grinding machine for your material and finish combination, focus on these specs in this order:
Amplitude (mm) determines how forcefully media contacts the part surface. Machines with fixed amplitude are cheaper but less versatile. Look for a machine with adjustable amplitude across at least a 3–10mm range so you can optimize for deburring (high amplitude) and polishing (low amplitude) without buying two machines.
Frequency (Hz) determines how many impacts per second occur. Higher frequency = more impacts, faster material removal but less forceful per impact. For most industrial applications, 50–60Hz is the standard range. Some machines offer dual-frequency or programmable frequency — worth the premium if you run multi-stage finishing workflows.
Match working volume to your batch size, not the total bowl capacity. Industry standard: parts should occupy 50–60% of the working volume; media fills the rest. Underfilling reduces efficiency; overfilling causes part-on-part collision damage and inconsistent finishes. If you run batches of 50 lbs of parts, you need a machine rated for at least 100–150 lbs working volume.
If your finish target requires specific compound chemistry (e.g., acidic compound for aluminum desmut, rust inhibitor for steel burnishing), confirm the machine's tub material is compatible. Polyurethane-lined bowls are chemically resistant for most aqueous compounds. Steel-lined bowls require careful compound selection to avoid corrosion.
For high-volume North American buyers, programmable cycle timers, variable speed drives, and integrated compound dosing are worth the investment. They reduce operator dependency and improve batch-to-batch consistency — directly impacting your reject rate and per-part cost. If you're running 3+ shifts per day, automate what you can.
Pricing is driven by bowl size, automation level, and build quality:
Bowl Capacity (Working Volume) | Price Range (Standard) | Price Range (With Variable Amplitude + Automation) | Best For |
|---|---|---|---|
150–350 liters | $1,000 – $2,000 | $2,000 – $6,000 | Job shops, R&D, low-to-medium volume production |
350–650 liters | $2,000 – $4,000 | $6,000 – $12,000 | Medium manufacturers, contract finishers |
650–1,500 liters | $4,000 – $10,000 | $12,000 – $20,000 | High-volume automotive, aerospace, medical device suppliers |
Sourcing from a Chinese manufacturer typically reduces cost by 40–60% before shipping and import duties. The critical question for North American buyers is not just price — it is whether the supplier can provide process validation (sample trials), spare parts with reasonable lead times, and remote technical support. A machine that costs 40% less but comes without process validation support will cost more in re-trials and production delays than the price difference you saved.
Every part material and finish combination is different — what works for stainless steel deburring may not be optimal for aluminum pre-plate preparation. We provide free process consultation and sample trials at our facility: you send us parts and your target finish spec, we run the trial, confirm the cycle time and Ra outcome, and recommend the machine configuration that meets your production targets.
We supply vibratory grinding machines with variable amplitude control, programmable cycle timers, and compound-compatible bowl linings — built to North American electrical standards (UL/CSA) with worldwide shipping, on-site installation, and multi-year aftersales support.
Ready to discuss your material and finish requirements?
Contact us → or request a free sample processing trial with your parts today.
Q: How do I know which machine frequency is right for my part material?
A: In most industrial applications, 50–60Hz is the standard range. For soft metals like aluminum, brass, or zinc die-castings, use lower amplitude and medium frequency (50Hz) to avoid surface embedding. For harder materials like hardened steel, stainless, or cast iron, higher amplitude with 50–60Hz provides faster stock removal. The most important thing is to run a sample trial with your actual parts — material hardness, geometry, and surface condition all influence the optimal setting, and a trial takes the guesswork out of the purchase decision.
Q: Can one machine handle both deburring and polishing of the same material?
A: Yes, if the machine has variable amplitude control. Run deburring at high amplitude with aggressive ceramic media, then drain, clean, and reload with fine plastic or steel media at low amplitude for the polishing stage. Some machines offer dual-frequency modes that switch automatically between stages. If your target finish is mirror-grade (Ra <0.4 μm), you may still need a separate burnishing or superfinishing step — vibratory finishing alone rarely achieves that level on hardened steels without multiple sequential media stages.
Q: How does part geometry affect the machine specification I need?
A: Parts with blind holes, internal cavities, or delicate features are more prone to media lodging or part-on-part collision damage. For these geometries, use lower amplitude and softer media (plastic or corn cob), and load at a lower batch density (40–50% of working volume instead of 60%). Parts with simple profiles and uniform cross-sections can run at higher amplitude and density. When in doubt, request a sample trial with your actual part geometry — this is the single most reliable way to confirm a machine is right for your application before you commit to a purchase.
