100B
Norden
|
Product Description

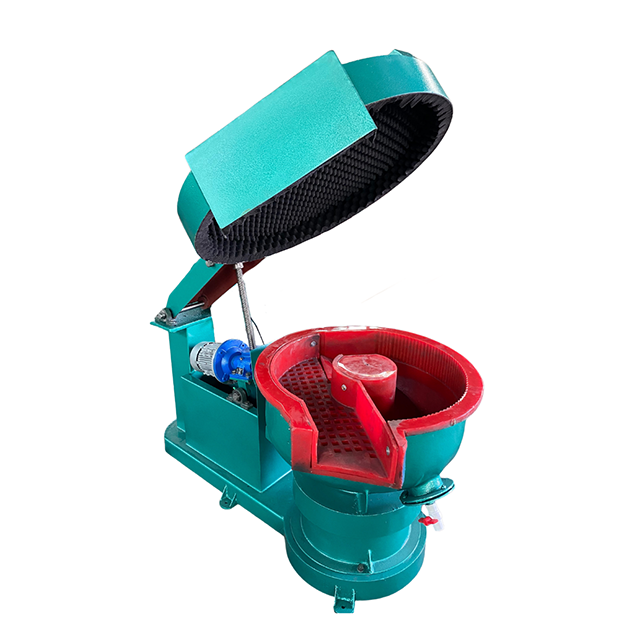

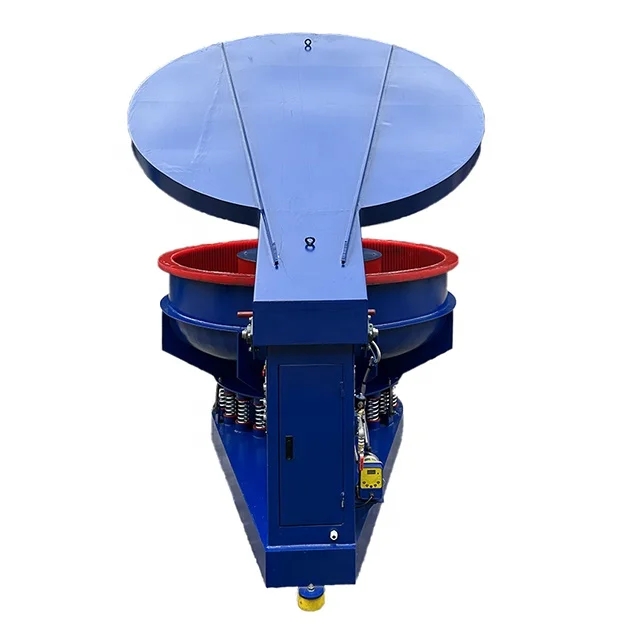

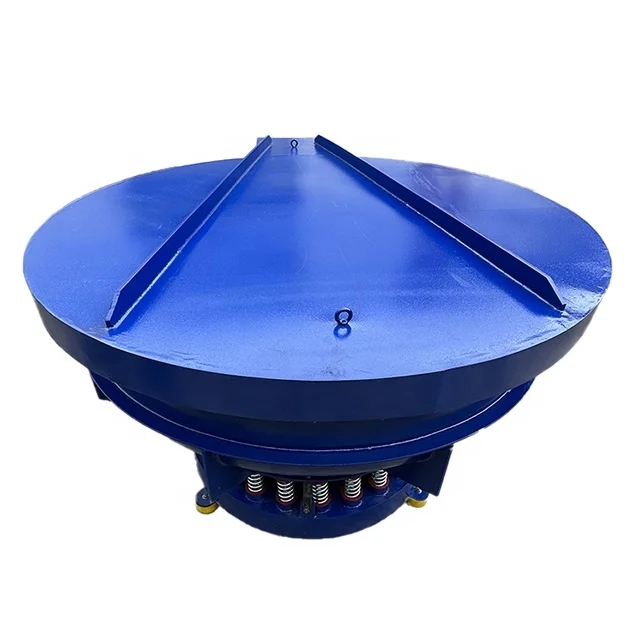

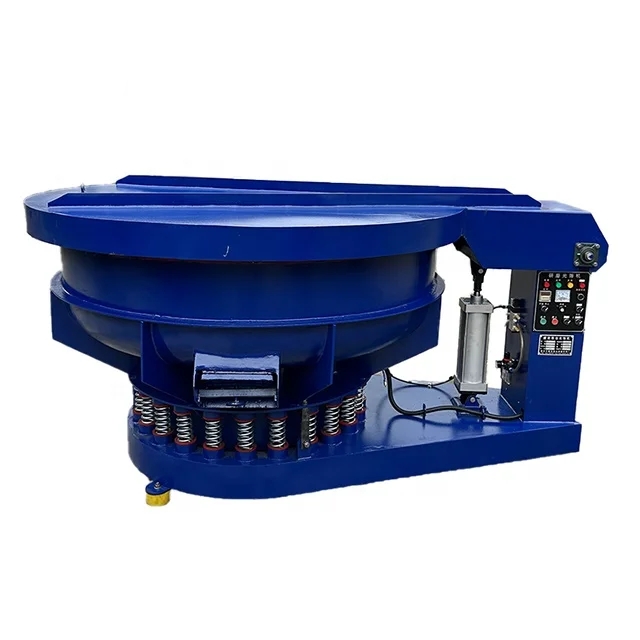

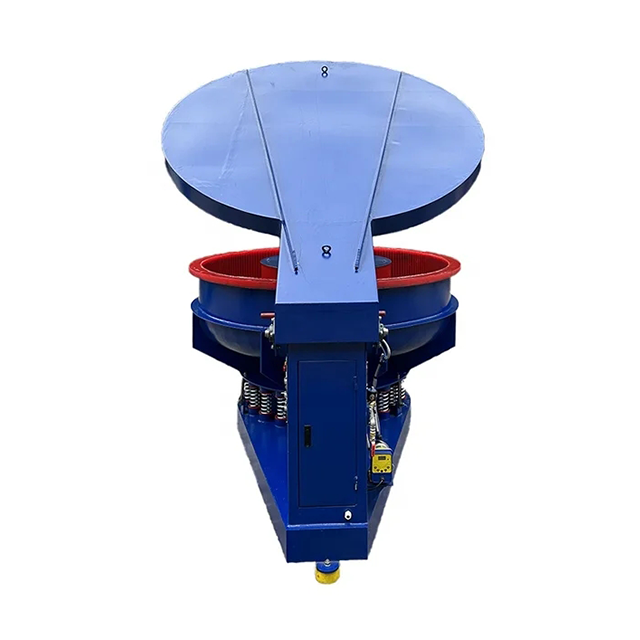

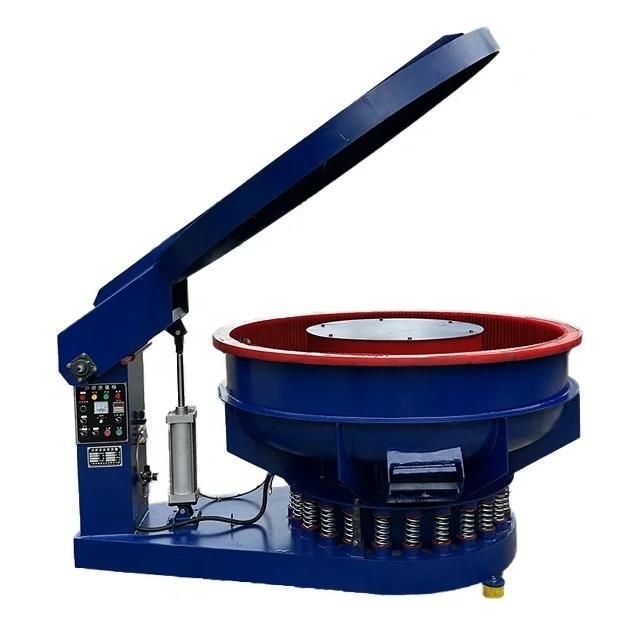

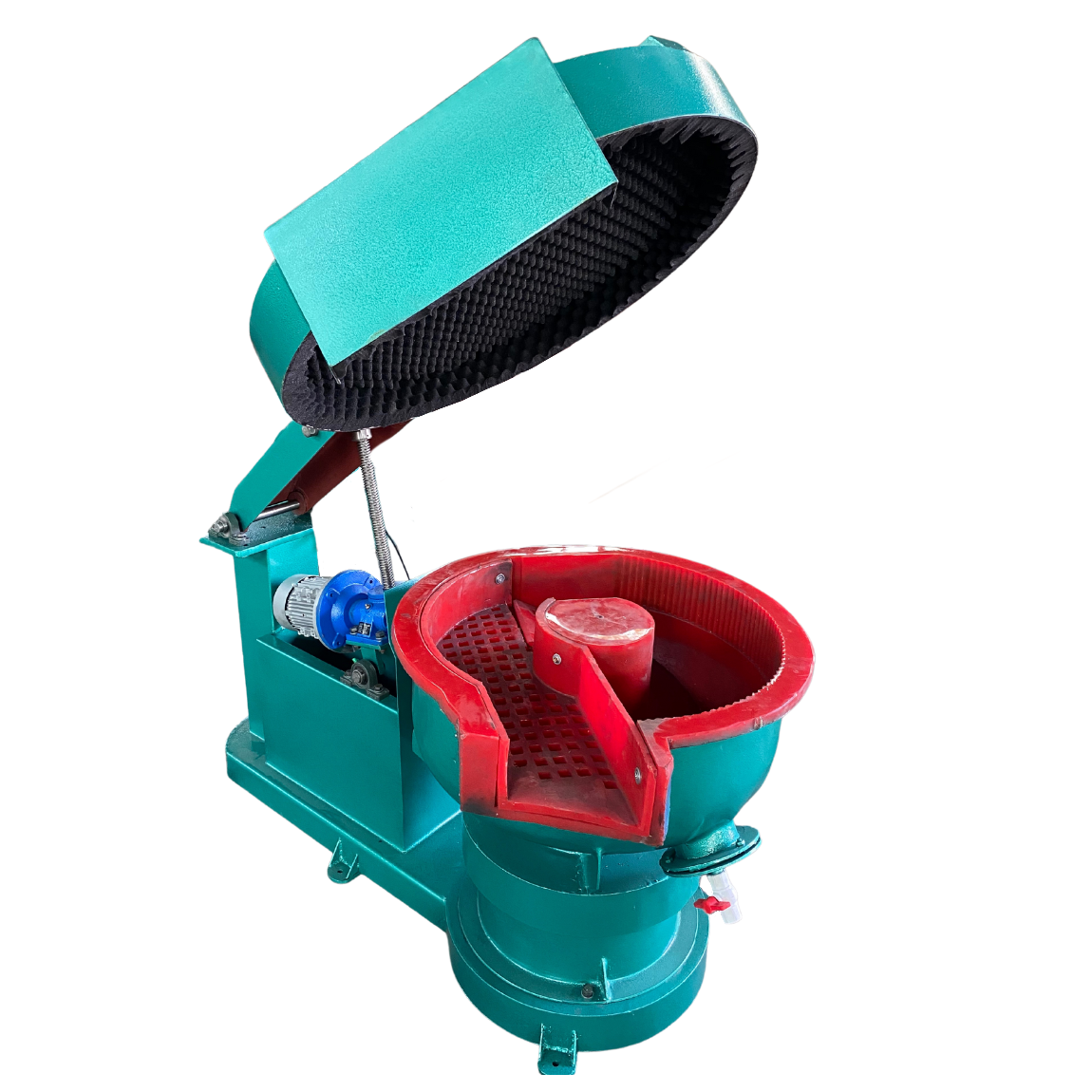

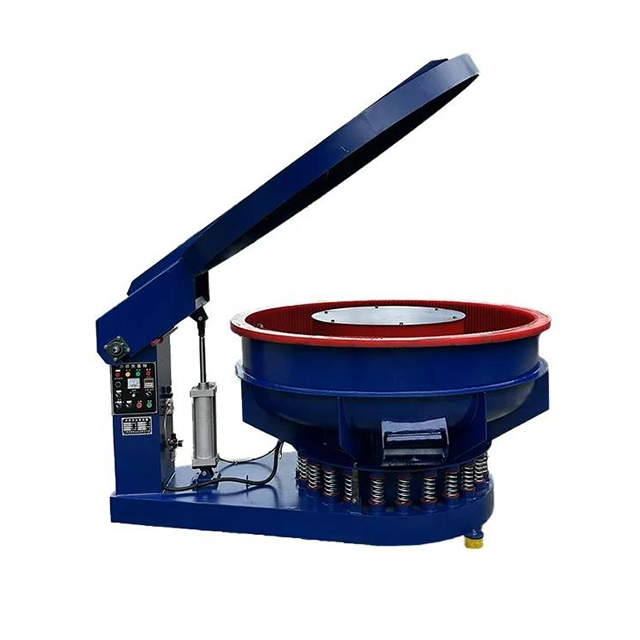

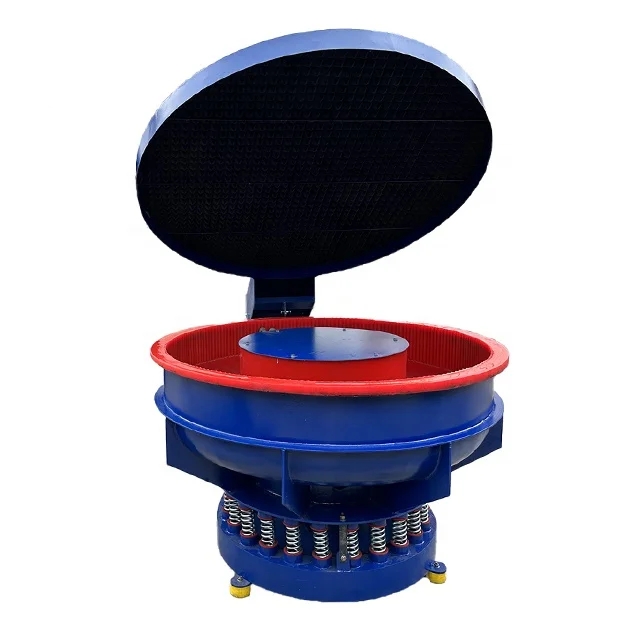

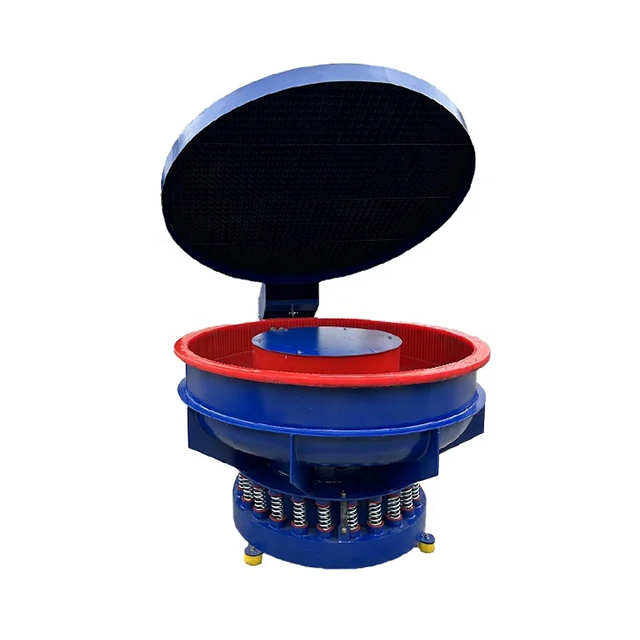

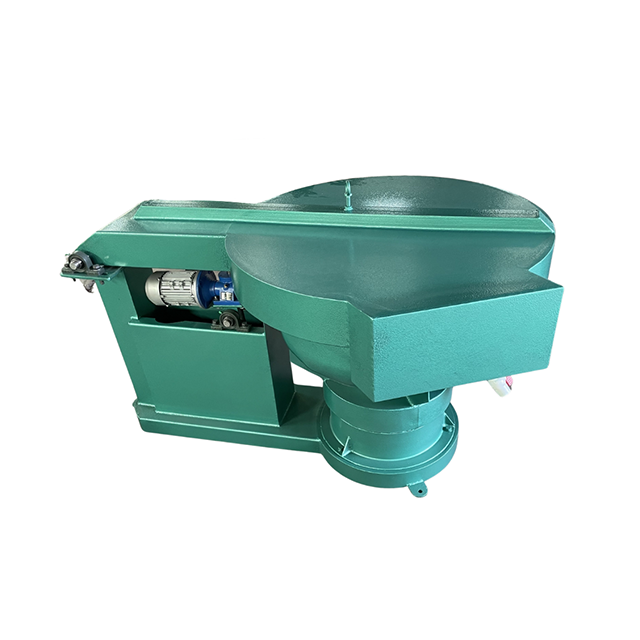

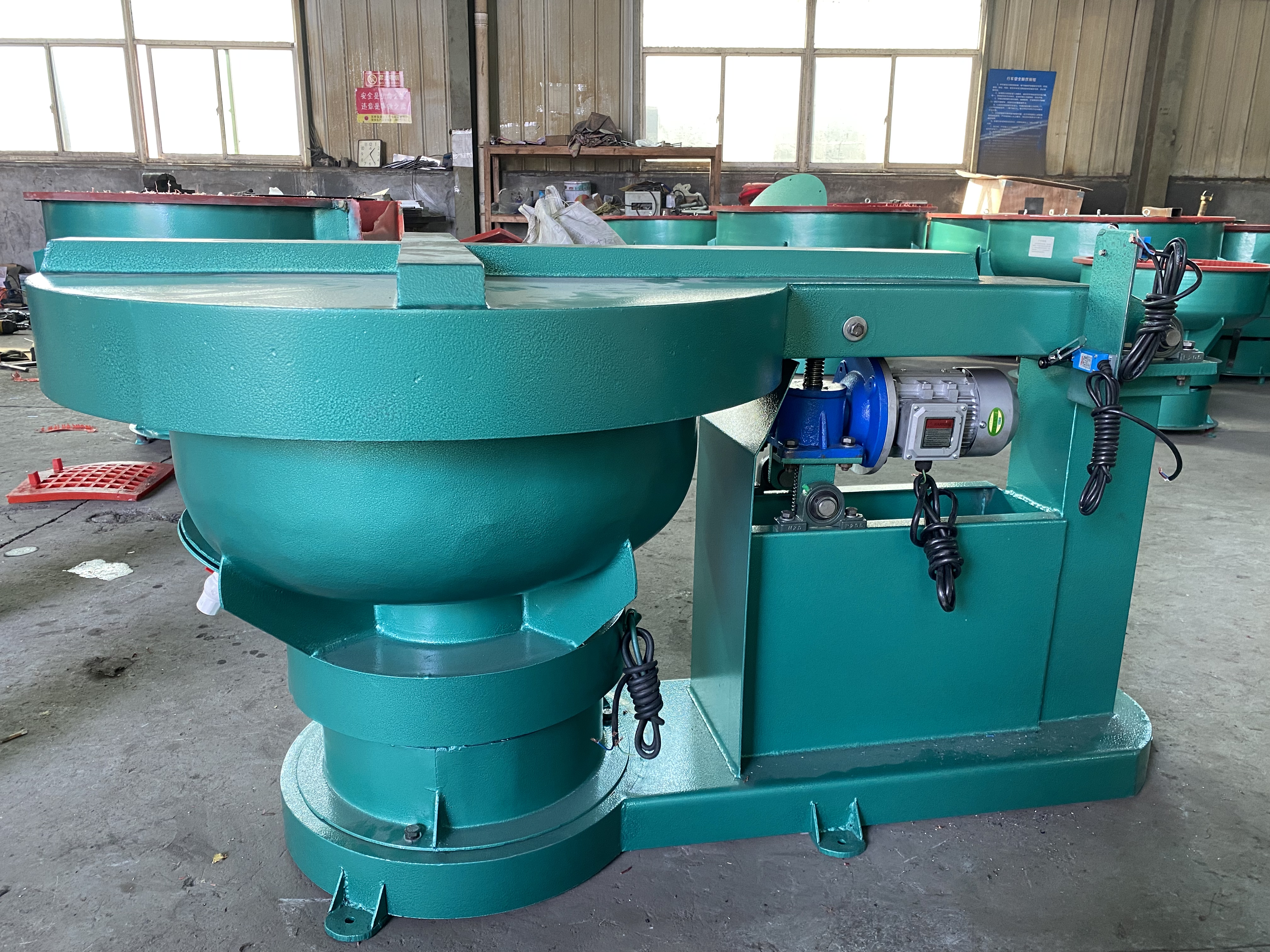

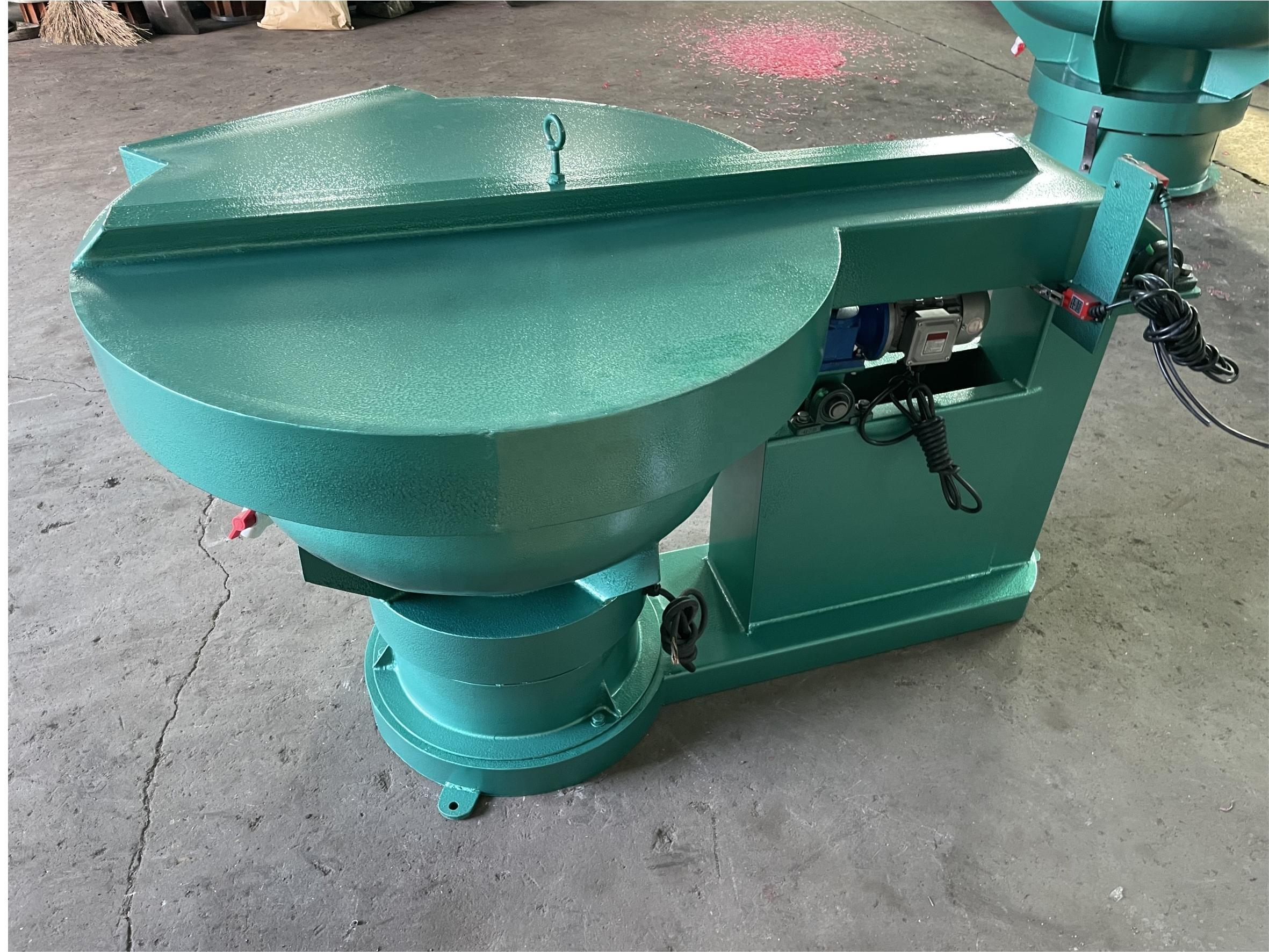

Noise-Reduction Cover for Vibratory Finishing Machines
Vibratory polishing machine with soundproof cover adopts the world's advanced spiral rolling flow, three dimensional vibration principle, so that the parts and the tumbling abrasives grinding each other. The main components of this machine are vertical motor, rubber-lined container, spring, base, and a muffler support ring. The vertical vibration motor is fixed to the container and is installed together with it on a spring that is connected to the base.

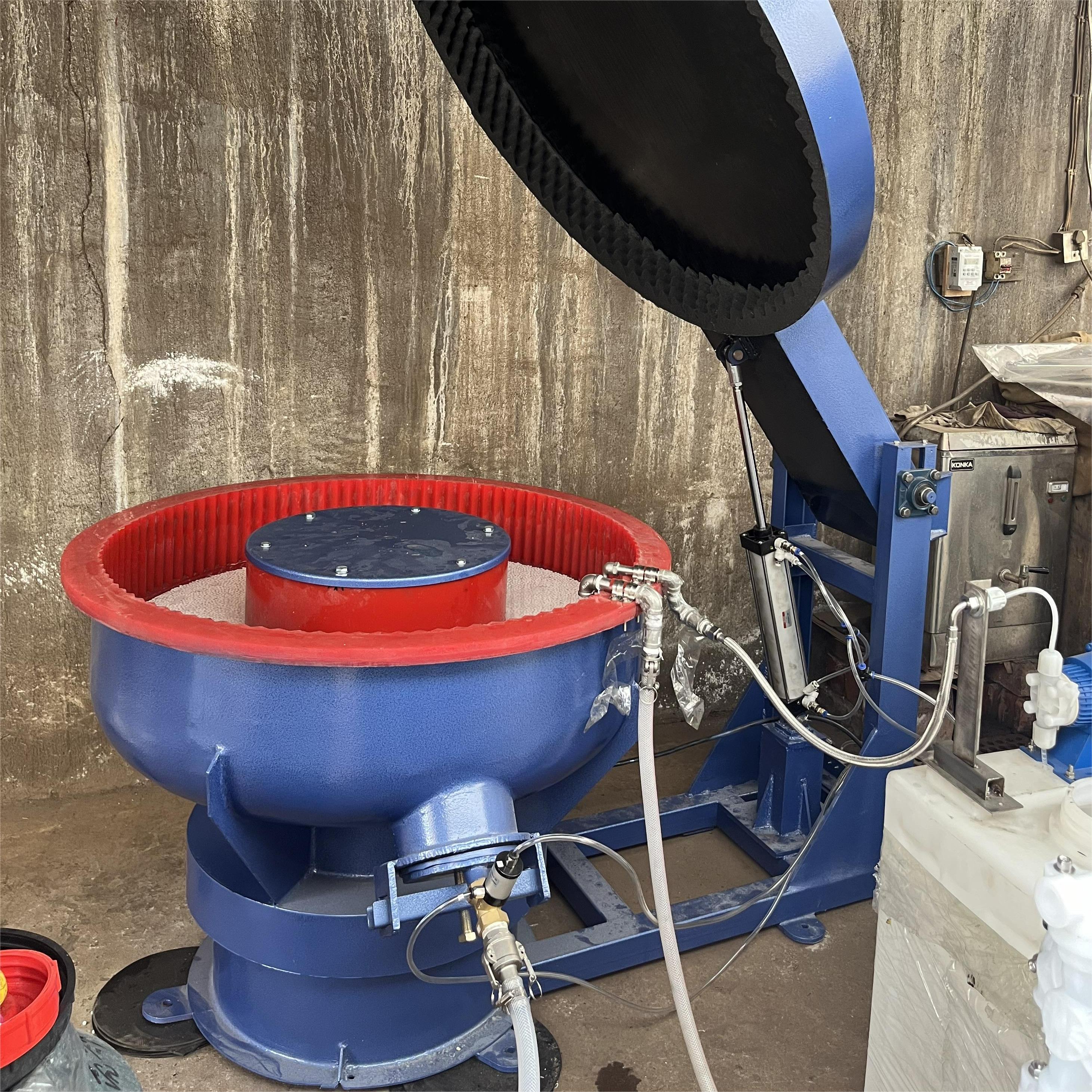

This acoustic lid, also referred to as a noise-enclosing or noise-abatement lid, serves a dual purpose. Not only does it effectively reduce noise during machining, it also significantly reduces splashing of water and polishing compounds. It is designed to maximize noise absorption.
It’s important to note that various factors influence noise generation during the finishing process. Rather than compromising the process, this unique design optimizes the process while creating a friendlier working environment for the polishing media, the workpiece and the polishing compound.
A noisy workshop with floors covered in spilled finishing compounds is far from ideal. With this lid, noise emissions are reduced to below 80 decibels, ensuring a cleaner and quieter workspace.

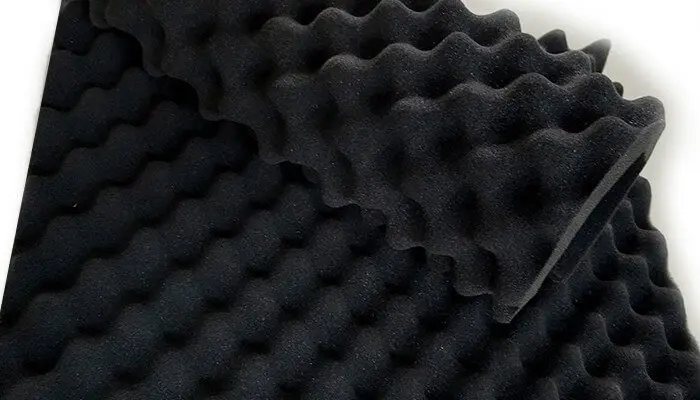

The inner wall is coated with PU glue which is high wear-resistant and corrosion-resistant. The soundproof cover reduces noise and cushions the impact of parts hitting the wall. There is a layer of sponge on top of the soundproof cover, which can better eliminate working noise. The design of soundproof cover adapts to the current environmental requirements. The polishing effect is the same as normal vibratory polishing machine.
Vibratory polishing machine with soundproof cover is easy to operate. Firstly, you should put some polishing tumbling media in the container. Then you can put you products requiring grinding. Finally, you can operate the machine according to the instructions. Through the consistent vibration of the container, it effectively eliminates burrs, sharp edges, corners, rust, oil stains to achieve a high level of finishing, smoothness, and brightness on the surface.

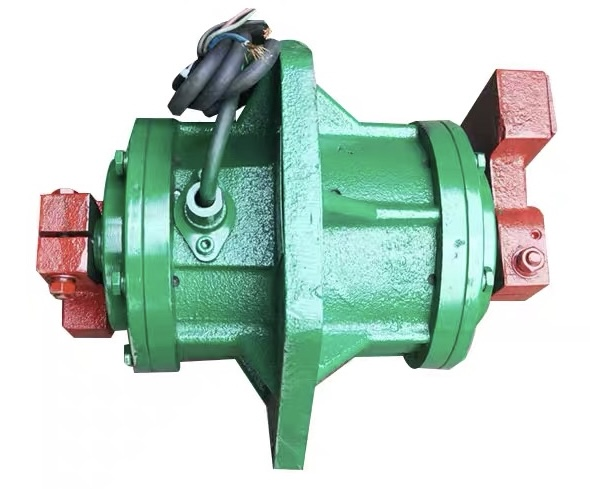

Pure Copper Motor
PU Internal Liner
Thickened Steel Plate
No Damage To Parts
| Feature
1. Greatly reduce polishing noise.
2. Large loading capacity and wide application range.
3. Manually separate polishing media and products.
4. Easy to operate.
5. Does not destroy the original size and shape of the part.
6. Suitable for large batch processing.
|
Application
Vibratory polishing machine with soundproof cover can be applied to the surface polishing, chamfering, deburring, polishing and brightening of various size parts in mass production. It has the same polishing effect as normal vibratory polishing machine. It also can eliminate the internal stress of the parts and provide the surface finish of the product. It lays a good foundation for electroplating, spraying and other surface treatment.
1. Jewelry polishing, such as pendants, earrings, necklaces, rings, chains, bracelets, pearls, silverware.
2. Cutlery polishing, such as spoons, forks and knives.
3. Rust removal and deburring hardware tools
4. Electronic components finishing
5. Plastic deburring
6. Ceramic jade polishing
7. Laser cut parts polishing
8. 3D print parts polishing
9. ...
|
Size Information
Here is the general product parameter information we can provide. If you need to customize the size or change the engine power please contact us.
Vibratory Polishing Machine with Soundproof Cover

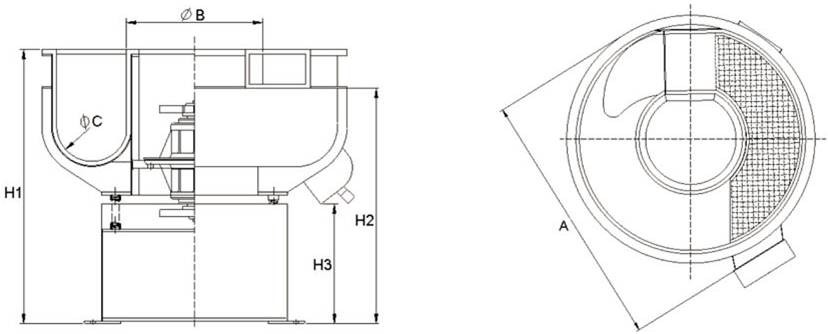

Size Parameter Picture
| Model | 100B | 150B | 200B | 300B | 400B | 600B |
| Total volume(L) | 100 | 150 | 200 | 270 | 480 | 660 |
| Max overall dimension(mm) A | 1080 | 1170 | 1200 | 1370 | 1430 | 1860 |
| Motor installation tube(mm) B | φ460 | φ460 | φ530 | φ630 | φ630 | φ900 |
| Process bowl width(mm) C | φ220 | φ260 | φ252 | φ275 | φ330 | φ390 |
| Unload width(mm) | 250 | 210 | 250 | 320 | 380 | 470 |
| Machine height(mm) H1 | 980 | 860 | 940 | 960 | 1270 | 1140 |
| Unload height(kw) H2 | 800 | 710 | 770 | 760 | 1090 | 925 |
| Media unload height(kg) H3 | 470 | 440 | 360 | 290 | 570 | 400 |
| Motor(kw) | 1.5/2.2 | 2.2 | 3 | 3.7/5.0 | 5 | 5.5/7.5 |
| Weight(kg) | 280 | 320 | 460 | 650 | 780 | 1180 |
Customization

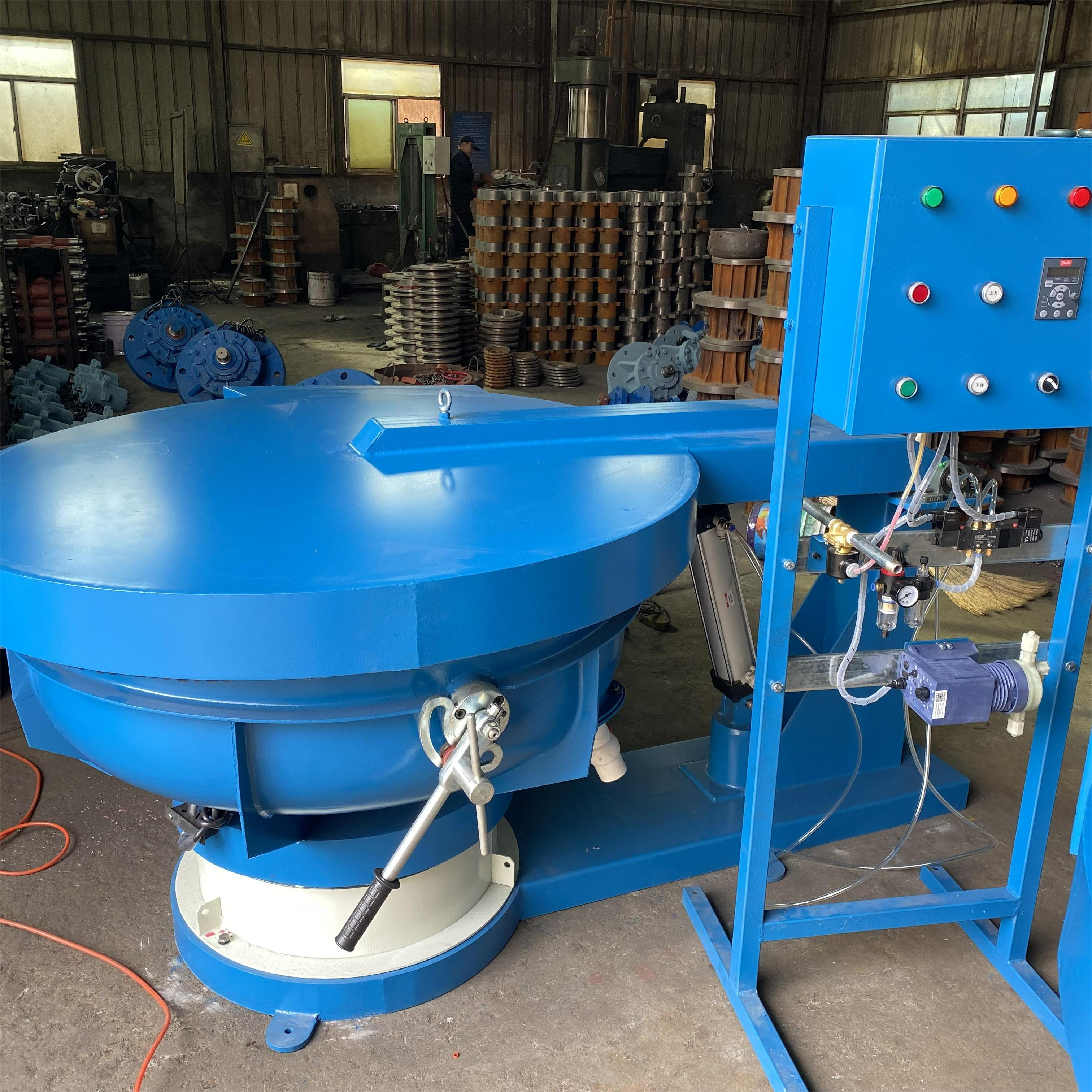

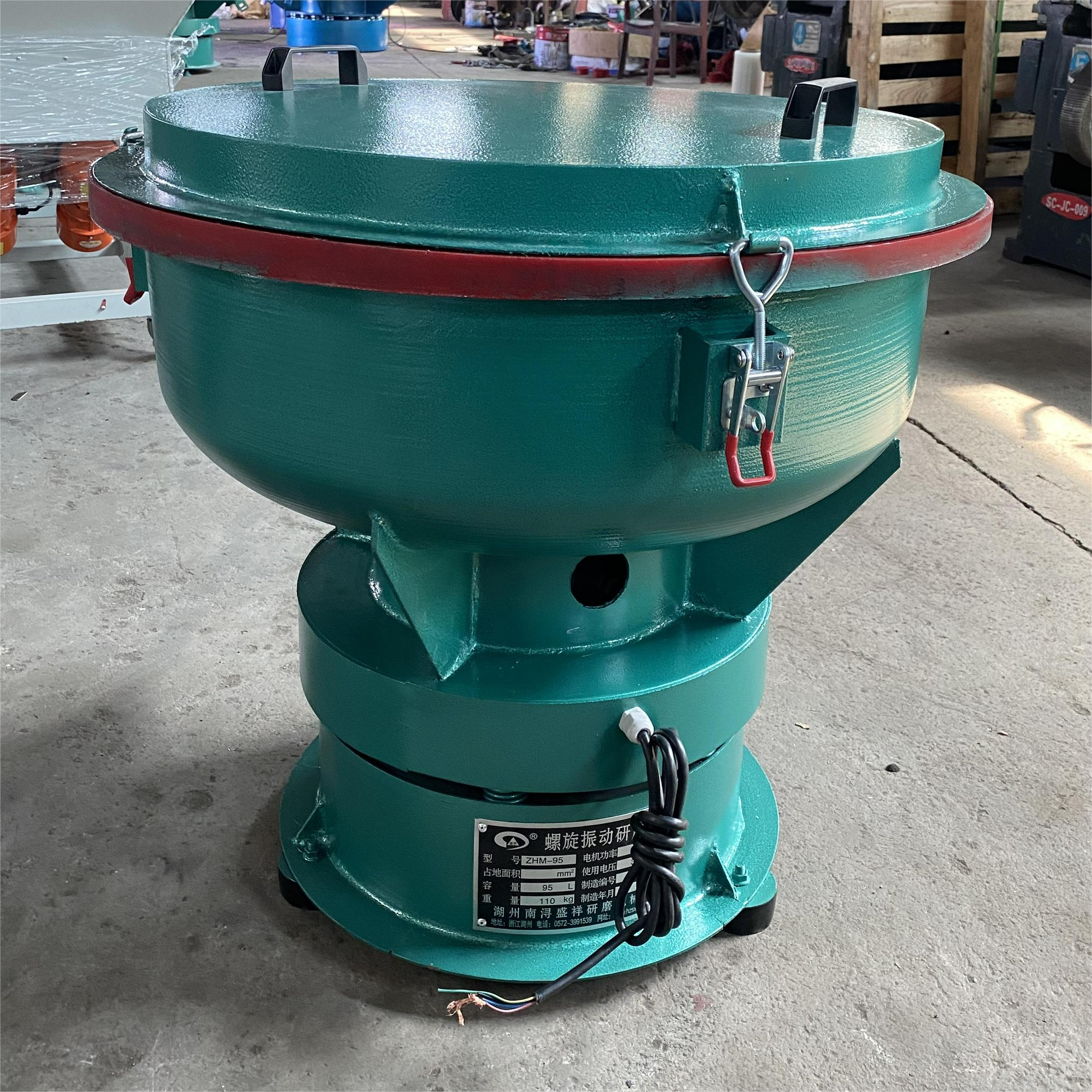

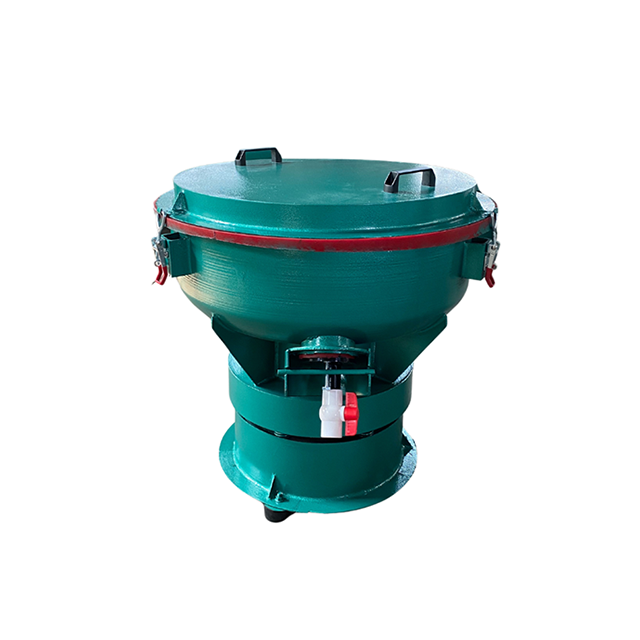

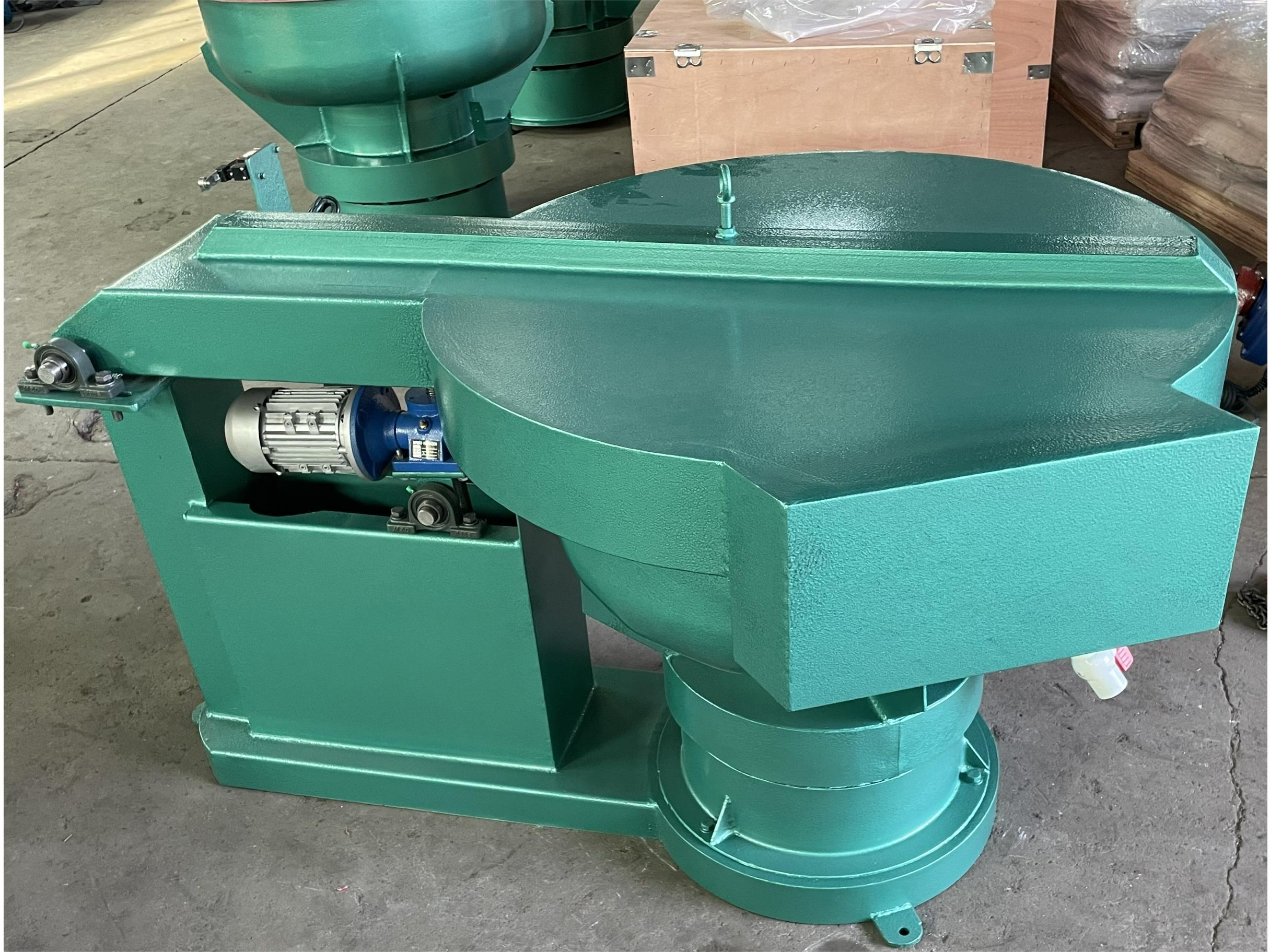

Norden machinery has rich manufacturing experience for more than 20 years. We can provide you with product customization services. If you have any special color or shape customization needs, please can contact us. We hope that our products can help you in your business. We will do our best to meet your needs. Here are some customized machines from other customers.
|
