Views: 0 Author: Site Editor Publish Time: 2026-03-21 Origin: Site
Target Audience
This article is for: Manufacturing procurement engineers, Surface finishing process engineers, Metalworking professionals
Core Answer: Metal parts polishing is a surface finishing process that improves metal surface roughness through physical or chemical methods. It mainly includes three categories: vibratory polishing, magnetic polishing, and centrifugal polishing. Choosing the correct polishing method requires considering workpiece material, shape precision requirements, and production efficiency.
Metal parts polishing is a crucial surface finishing process in manufacturing. It removes microscopic imperfections on metal surfaces through mechanical friction, chemical reaction, or both, achieving desired roughness grades (typically Ra 0.1-1.6μm) and gloss requirements.
According to ASME standards, surface roughness directly affects:
Wear Resistance: Every 0.1μm reduction in roughness improves wear life by 15-20%
Fatigue Strength: Smooth surfaces can extend fatigue life by over 30%
Corrosion Resistance: Micro-grooves are triggers for stress corrosion cracking
Assembly Precision: Affects fit tolerance and sealing performance
In industrial applications, metal parts polishing is typically divided into five grades:
| Polishing Grade | Roughness (Ra) | Process Method | Applications |
|---|---|---|---|
| Rough Polishing | 3.2-12.5μm | Vibratory, Tumbling | Deburring, oxide removal |
| Semi-Finish | 0.8-3.2μm | Vibratory + fine media | General mechanical parts |
| Fine Polishing | 0.2-0.8μm | Magnetic, Centrifugal | Precision components |
| Super-Fine | 0.025-0.2μm | Magnetic, Chemical | Aerospace parts |
| Mirror Finish | <0.025μm | Electrolytic, Combined | Optical, Medical devices |
Vibratory Polishing Machines use a generator to create three-dimensional elliptical vibrations in the bowl. Grinding media and workpieces generate high-speed rotation and mutual friction under vibration.
Technical Parameters:
Vibration Frequency: 20-60Hz
Amplitude Range: 3-8mm
Processing Capacity: 50-500kg/batch
Typical Roughness: Ra 0.4-1.6μm
Advantages:
Low equipment cost, high ROI
Strong versatility, suitable for almost all metal materials
Suitable for large-scale continuous operation
Relatively controllable noise (soundproof models can reduce to below 75dB)
Limitations:
Limited effectiveness for complex cavities and deep holes
Relatively fast media consumption
Relatively long polishing cycles (typically 30-120 minutes/batch)

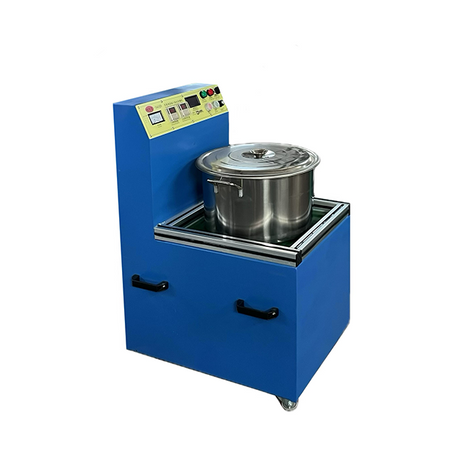

Magnetic Polishing Machines use magnetic fields to drive magnetic grinding media (stainless steel needles) at high speed, performing non-contact precision polishing. This is ideal for areas difficult to reach with traditional methods.
Core Principle: Alternating magnetic fields drive 0.2-1.5mm diameter stainless steel magnetic needles to produce 3,000-8,000 high-frequency movements per second, creating a micro-cutting effect.
Technical Advantages:
No Dead Spots: Can process deep holes, grooves with inner diameters ≥0.8mm
Super-Fine Results: Can achieve Ra 0.025-0.2μm mirror finish
Zero Damage Risk: Non-contact processing, no deformation
Excellent Efficiency: Single piece processing time only 3-15 minutes
Typical Applications:
Medical device implants (artificial joints, dental instruments)
Aerospace hydraulic valves
Precision mold inserts
Electronic connector pins
Centrifugal polishing machines include Centrifugal Barrel Machines and Centrifugal Disc Finishing Machines, suitable for scenarios requiring both efficiency and surface quality.
Centrifugal Barrel Machine:
Uses planetary motion principle (bowl rotation + self-rotation)
Centrifugal force can reach 10-50 times gravity
Suitable for large and medium-sized workpiece batch processing
Polishing time: 15-45 minutes/batch
Centrifugal Disc Machine:
Uses vortex principle, grinding media circulates at high speed along disc wall
Grinding media speed can reach 8-15m/s
15-30 times more efficient than traditional vibratory polishing
Suitable for small precision parts mass production
| Dimension | Vibratory | Magnetic | Centrifugal | Centrifugal Disc |
|---|---|---|---|---|
| Price | $1,100-7,000 | $2,100-11,000 | $4,200-21,000 | $3,500-17,000 |
| Min Ra | 0.4μm | 0.025μm | 0.2μm | 0.1μm |
| Best For | Large/medium | Small precision | Large/medium | Small precision |
| Batch Capacity | 50-500kg | 5-50kg | 20-200kg | 10-100kg |
| Internal Cavities | Not suitable | Perfect | Not suitable | Not suitable |
| Noise | 80-95dB | 60-70dB | 85-100dB | 75-90dB |
| Maintenance | Medium | Low | High | Medium |
Based on a metal processing shop with annual output of 1,000 tons:
| Equipment | Investment | Media Cost/Year | Labor Cost | Cost/ton |
|---|---|---|---|---|
| Vibratory | $21,000 | $4,200 | $25,200 | $29 |
| Magnetic | $28,000 | $2,100 | $11,200 | $13 |
| Centrifugal Disc | $25,200 | $3,500 | $8,400 | $12 |
Conclusion: In the long run, high-efficiency equipment has obvious cost advantages despite higher initial investment.
Grinding media is the core consumable material in polishing processes. Its material, shape, and size directly affect polishing results and efficiency.
| Material | Hardness | Best For | Price |
|---|---|---|---|
| Plastic Media | HRC 35-45 | Aluminum, Zinc, Plastic | $ |
| Ceramic Media | HRC 60-70 | Stainless Steel, Titanium | $$$ |
| Stainless Steel | HRC 45-55 | Magnetic polishing | $$$ |
| Workpiece Feature | Recommended Shape |
|---|---|
| Complex geometries | Spherical, triangular cone |
| Flat or simple shapes | Cylindrical, cubic |
| Deep hole inner walls | Fine needle shape |
| Deburring focused | Star, diamond shape |
Size Formula: Media Diameter = Workpiece Min Inner Diameter × 0.3-0.5
Tip: For first-time use, test with smaller-sized media to avoid jamming.
Challenge: Soft precious metals (18K gold, silver) require damage-free mirror finish with complex structures.
Solution: Centrifugal Disc Machine + Fine Plastic Media
Case Study: A Guangdong jewelry manufacturer increased daily capacity from 500 to 2,000 pieces with 99.2% quality pass rate.
Challenge: Engine components, steering knuckles need both high gloss and fatigue strength.
Solutions:
Large structural parts: Vibratory + Ceramic Media
Precision valves: Magnetic + Stainless Steel Media
Bearing races: Centrifugal + Ultra-fine Ceramic Media
Challenge: Implants require surface roughness Ra<0.1μm to reduce tissue rejection.
Solution: Magnetic Polishing + Nano-level Stainless Steel Media + Chemical Polishing
Standards: ISO 5832-2, FDA 21 CFR Part 820
Challenge: Hydraulic valve bodies and turbine blades need fatigue resistance and sealing (titanium/superalloys).
Solution: Centrifugal Barrel Machine + Silicon Carbide Ceramic Media + Precision Process Control
Q1: Does polishing change workpiece dimensions?
A: Correctly configured processes control dimensional impact within ±0.01mm. For parts with precision requirements <0.01mm, use "pre-polishing + fine polishing" staged strategy.
Q2: Vibratory polishing machine noise is too loud?
A: Standard: 85-95dB | With soundproof cover: 70-80dB | With vibration isolation: 65-72dB. For 80dB limits, choose soundproof models with vibration pads.
Q3: Can stainless steel and aluminum be polished together?
A: Not recommended due to: 1) Different hardness causes over-polishing of aluminum, 2) Metal dust may cause electrochemical corrosion, 3) Media contamination affects plating/passivation.
Q4: How to determine if polishing is complete?
A: Methods include: Visual inspection (Ra>0.8μm), Touch test (trained inspectors), Roughness tester (Ra meets requirements), or Fixed time (mature processes).
Process Selection: Choose based on workpiece material, shape, and precision requirements
Equipment Selection: Consider production needs, site conditions, and maintenance capabilities
Media Matching: Matching degree directly affects efficiency and quality
Cost Optimization: Calculate TCO from equipment + consumables + labor perspective
