Views: 0 Author: Site Editor Publish Time: 2026-05-02 Origin: Site
For decades, traditional vibratory tumbling dominated the metal finishing industry. However, the rapid rise of highly intricate, complex parts has forced a major shift toward magnetic burnishing. Modern manufacturers now face much tighter tolerances and increasingly delicate component geometries.
Selecting the wrong finishing equipment often leads to severe production bottlenecks. You risk damaging delicate components or wasting valuable capital on production capacity you simply do not need. Choosing the proper setup is critical to maintaining a high production yield while preserving structural integrity.
We will break down the primary categories of these specialized finishing tools. You will discover their operational limits, advanced configurations, and proven material matching strategies. This objective guide provides a clear, reliable framework to help you evaluate which unit fits your specific production line perfectly.
Magnetic polishing machines are primarily categorized by capacity (Desktop/On-table vs. Industrial/Floor-standing) and kinetic configurations (Single-spindle vs. Twin-spindle).
These machines excel at penetrating blind holes, deep recesses, and intricate details but are not designed for heavy material removal (cutting/abrading).
Evaluating total cost includes not just the machine, but media retention, chemical consumables, and maintenance downtime.
Matching cycle times and pin sizes (e.g., 0.5mm x 6mm) to specific metal hardness is critical to preventing surface damage or "frosty" finishes.
Desktop units serve specialized sectors requiring extreme precision over high throughput. Artisan jewelers, dental laboratories, and medical device manufacturers heavily rely on these compact systems. They excel at processing micro-medical implants, such as titanium bone screws, and small-batch R&D prototypes.

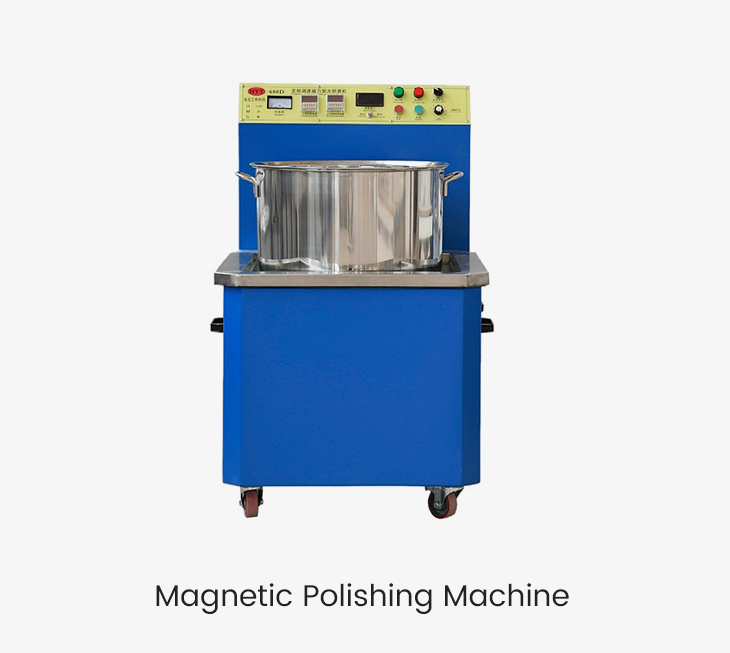

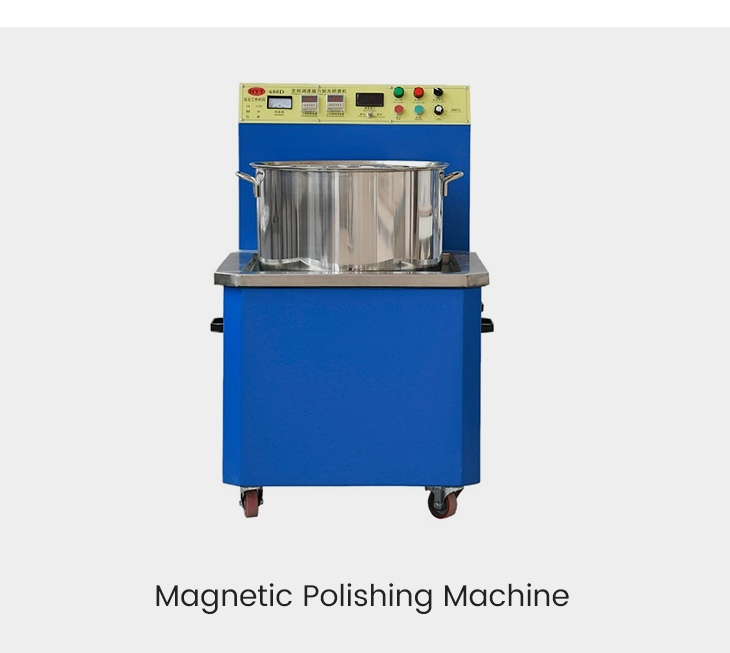

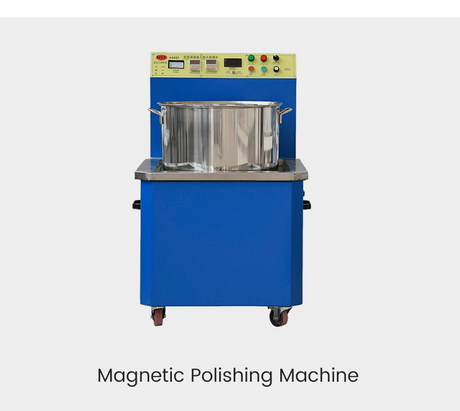

A standard desktop Magnetic Polishing Machine typically handles a total mass ranging from 0.2 KG to 2 KG per cycle. This capacity includes the combined weight of your parts, the liquid compound, and the stainless steel media.
Operationally, these units are highly compact and run on standard electrical voltage. They easily fit onto existing workbenches without requiring facility upgrades. However, operators must perform manual loading, manual unloading, and manual media separation. This manual intervention makes them unsuitable for continuous, unmonitored production runs.
Floor-standing models are the workhorses of the mass manufacturing sector. They target high-volume applications like automotive parts, aerospace components, mass-produced fasteners, and CNC machined brass or aluminum fittings. When you need to process hundreds of parts per hour, industrial units deliver the necessary kinetic force.
The capacity profile scales dramatically. These machines process loads ranging from 10 KG up to 24 KG or more per single cycle. This massive jump in volume requires robust engineering.
Industrial systems feature much heavier-duty electromagnets capable of driving dense media fields. They incorporate advanced cooling systems designed specifically for continuous 24/7 operation. Furthermore, they often integrate programmable logic controllers (PLCs) for precise recipe management and feature automated media separators to drastically reduce manual labor.
Comparison Chart: Desktop vs. Industrial Models
Feature | Desktop / On-Table | Floor-Standing / Industrial |
|---|---|---|
Target User | Jewelers, Dental Labs, R&D | Automotive, Aerospace, CNC Shops |
Typical Capacity | 0.2 KG - 2 KG | 10 KG - 24 KG+ |
Operation Cycle | Intermittent / Batch | Continuous / 24/7 |
Media Separation | Manual sieve/magnet | Automated separation systems |
Engineers often face a distinct physics problem when scaling up magnetic finishing. Large circular processing bowls naturally develop magnetic "dead zones." The center of the bowl often experiences uneven kinetic distribution, leaving parts under-processed compared to those riding the outer walls.
Manufacturers solved this by introducing twin-spindles and oscillating horizontal bases. Instead of a single static magnetic field rotating in one place, these advanced systems force the magnetic media to traverse the entire chamber. The horizontal movement ensures perfectly uniform exposure for larger, flat-profile parts. This eliminates dead zones entirely and guarantees consistent finish quality across every batch.
Another powerful configuration involves integrating a robust bubble wash system. This functionality combines standard magnetic pin rotation with forced aeration and vigorous bubbling action inside the fluid compound.
This feature proves essential for specific challenging use cases. Consider parts coated in heavy manufacturing oil, thick grease, or dense oxidation layers, such as heat-treated springs. Mechanical peening alone often fails to clear this thick debris. The upward lift of the bubbles carries suspended greases away from the part surface, allowing the stainless steel pins direct access to the bare metal beneath.
Understanding the actual physics of this process is crucial. You must understand clearly: magnetic polishing does not remove metal. Unlike traditional ceramic tumbling media, it uses magnetic kinetic energy to aggressively strike tiny stainless steel pins against the part. This action peens and burnishes the surface rather than cutting it.
The operational implication is strict. A Magnetic Polishing Machine cannot remove heavy burrs, deep gouges, or thick casting flash. It specializes exclusively in eliminating micro-burrs, blending light tooling marks, and stripping surface oxidation. Expecting it to perform heavy material removal will only lead to disappointment.
Buyers often fall into a predictable design limitation trap. We must warn operators that magnetic pins strike surfaces uniformly. On large, perfectly smooth, flat surfaces, these micro-impacts will leave a distinct micro-textured or "frosty" appearance. It will not yield a flawless, mirror-like flat reflection.
The absolute best fit for this technology lies in complex geometry. Its primary advantage is accessing internal areas traditional tumbling media simply cannot reach. Deep slots, blind internal threads, and dense filigree structures are where this equipment truly shines.
Processing soft metals requires highly specific time controls. Aluminum, gold, and silver react very quickly to kinetic impacts. Cycle times run extremely fast, typically finishing between 20 and 45 minutes for silver and gold. Aluminum requires even stricter time limits.
The primary risk factor here is over-processing. Leaving soft metals in the chamber too long leads to noticeable surface deformation. The high-impact velocity of the steel pins easily pits or rolls the delicate edges of soft alloys. You must monitor these batches closely.
Harder alloys demand patience and precise speed adjustments. Stainless steel, titanium, and platinum resist kinetic impact much better. Typical cycle times stretch out, requiring 60 to 120 minutes depending heavily on the initial oxidation level.
Finish quality relies heavily on rotational speed. Operators must select a slower rotational speed to avoid creating a dull film on stainless steel parts. Fast speeds generate excessive friction heat, which oxidizes the surface compound and dulls the final shine.
Material Processing Matrix
Material Type | Typical Cycle Time | Primary Risk Factor | Recommended Speed |
|---|---|---|---|
Aluminum | 10 - 20 mins | Edge rolling / peen damage | Low to Medium |
Gold & Silver | 20 - 45 mins | Surface deformation | Medium |
Stainless Steel | 60 - 120 mins | Dull oxidation film | Low |
Titanium | 60 - 90 mins | Incomplete oxide removal | High |
Proper sizing logic goes far beyond just calculating part volume. When shortlisting a machine, focus heavily on the base area of the working bowl. The entire bottom surface must remain sufficiently covered by stainless steel pins to conduct the magnetic field properly. Under-loading the media causes immediate machine inefficiency. The pins will clump, leaving large gaps in the kinetic field and resulting in unevenly polished parts.
You cannot use just any stainless steel. Standard grades like 304 or 316 are austenitic and completely non-magnetic. Buyers must purchase specific magnetic stainless pins. Commonly, facilities use 0.5mm x 6mm pins for general work, or step down to 0.5mm x 2mm pins for extreme micro-details.
Chemical costs also dictate long-term viability. Evaluate high-end burnishing compounds against proven shop-floor alternatives. For basic non-reactive metals, operators often successfully substitute mild dish soap or a mild white vinegar solution. These alternatives dramatically lower operational chemical costs without sacrificing the final aesthetic finish.
Do not purchase a system based purely on brochure specifications. Before issuing a purchase order, take the following next steps:
Demand a "sample processing test" directly from the manufacturer using your actual parts.
Request a detailed report of the exact pin size, compound mixture, and cycle time used to achieve the finish.
Verify the finish quality visually to ensure no frosty textures appear on your critical flat surfaces.
Confirm the local availability of spare parts, particularly replacement belts and proprietary magnetic disks.
Choosing between a desktop or industrial magnetic polishing machine comes down to evaluating your specific part geometry, daily throughput demands, and available facility footprint. Scaling up appropriately prevents immediate bottlenecks.
Reiterate internally that magnetic finishing remains a highly specialized step. It masters intricate details and micro-deburring, but it is not a blanket replacement for all traditional vibratory tumbling applications.
We encourage operational managers to audit their current manual hand-finishing efforts today. Calculate the hours spent picking out burrs under a microscope. Then, contact a trusted manufacturer and request a strict benchmark test to see how automated magnetic burnishing directly impacts your specific yield.
A: Yes for hard stones (diamonds, sapphires, rubies, CZ), as the pins usually glide over them. Strictly avoid putting soft stones in the machine. Applying clear nail polish over delicate stones can provide temporary impact buffering.
A: Blackening is caused by using the wrong soaps, trapped casting investment, or rapid oxidation. An industry-proven maintenance hack is running the pins in a 50/50 mix of Coca-Cola and water for 15 minutes to strip the oxidation, followed by a thorough rinse.
A: It can blend out extremely light surface scratches, especially on soft metals like gold. However, because the process does not cut or remove metal, deep scratches must be sanded or traditionally buffed prior to magnetic burnishing.
