Views: 0 Author: Site Editor Publish Time: 2026-04-29 Origin: Site

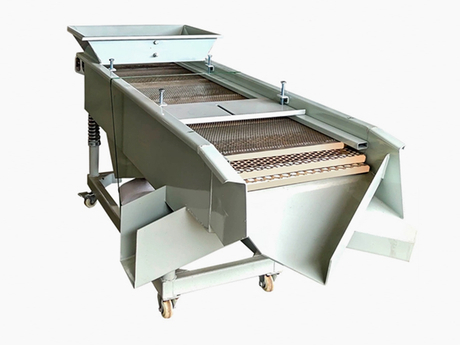

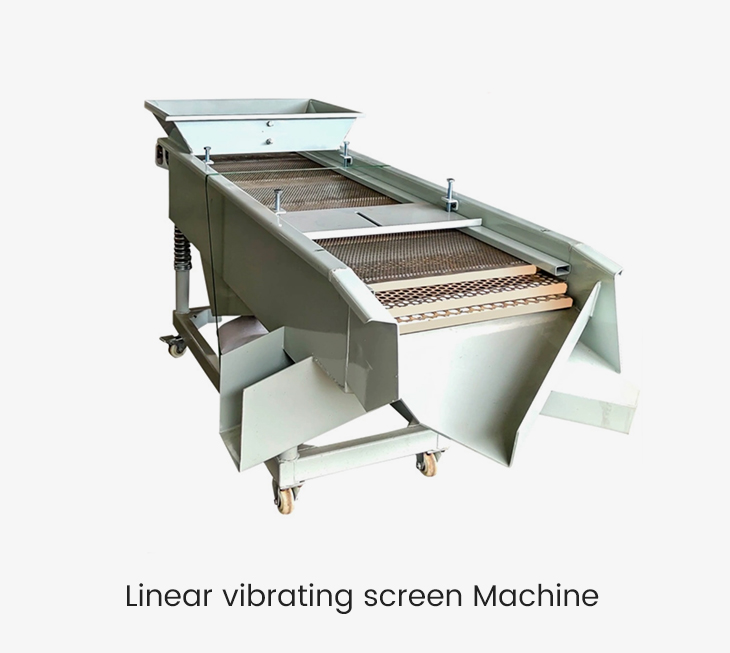

Unplanned downtime hits plant profitability hard. Operating a Linear Vibrating Screen Machine without a rigorous maintenance protocol accelerates component fatigue. It also compromises screening accuracy and slashes production throughput. Effective maintenance goes far beyond reactionary fixes when things break. It requires strict adherence to safety protocols. This includes comprehensive Lockout-Tagout (LOTO) procedures. You also need precise, component-level care to keep operations running smoothly.
This guide provides an evidence-based framework for plant operators and maintenance managers. You will learn how to standardize upkeep routines effectively. We will show you how to extend equipment lifespan and maximize operational efficiency. By implementing these practical strategies, you can transform your maintenance approach. You will move from reactive troubleshooting to proactive reliability.
Proactive ROI: Consistent preventive maintenance can extend the service life of a Linear Vibrating Screen Machine by up to 35% and improve uptime by 25%.
Precision is Non-Negotiable: Component tolerances are strict (e.g., exciter amplitude differences must not exceed 0.5mm; bearing temperatures must stay within 45–50°C of ambient).
Component Specificity: Specialized equipment requires specialized parts, such as C4 radial clearance bearings and ZL-3 lithium grease (never calcium-based).
OEM Partnership: Utilizing OEM parts and advanced condition monitoring (pulse vibration analysis, thermography) minimizes the risk of chain-reaction mechanical failures.
Reactive maintenance causes severe mechanical failures. Bearings seize rapidly under stress. Screen frames crack from unchecked vibrations. These catastrophic events halt your production lines instantly. You then face massive emergency shipping costs for heavy replacement parts. Plant managers cannot afford these predictable disruptions. Waiting for a breakdown is a costly operational strategy.
Structured maintenance directly improves your bottom line. Industry benchmarks reveal compelling data. A strict upkeep schedule can extend machinery lifespan by up to 35%. You can also experience up to 25% higher uptime. Consistent inspections keep your output steady. They prevent small mechanical drifts from becoming major structural catastrophes. Every dollar spent on proactive care returns multiples in preserved production capacity.
Neglecting maintenance creates severe safety and compliance risks. Worn components generate excessive noise. Unbalanced exciters create dangerous vibration hazards. A compromised structural frame could eventually collapse during operation. Safety must remain your top priority. Always enforce strict LOTO procedures before any inspection. Shut off power completely. Lock the controls. Tag the switches. Verify zero energy before touching the machine.
Exciters serve as the heartbeat of your screening equipment. You must maintain symmetrical adjustment of the eccentric blocks. Operators should check these blocks frequently. Amplitude differences between the left and right sides must not exceed 0.5mm. Any deviation greater than this will twist the structural frame. Frame twisting leads to fatal metal fatigue.
Best Practice for Lubrication: Add 300 to 600mL of ZL-3 lithium grease bi-weekly. Proper lubrication prevents destructive friction.
Common Mistake: Never use calcium-based grease. Calcium grease cannot withstand high operational temperatures. It degrades rapidly, causing bearings to overheat and seize completely.
You must use spherical roller bearings designed for high-vibration environments. Specifically, install bearings featuring a C4 radial clearance. Standard bearings will fail prematurely. The C4 clearance allows internal components to expand safely as temperatures rise during operation.
Temperature monitoring requires strict protocols. Check bearings using an infrared thermometer only after 4 hours of continuous operation. This duration ensures thermal stabilization. The temperature rise must not exceed 45–50°C above your ambient room temperature. Readings beyond this threshold indicate imminent bearing failure or over-lubrication.
Rubber springs isolate intense vibrations from the surrounding structure. They operate safely up to a maximum threshold of 45°C. Heat degrades rubber quickly. You can expect a standard lifecycle of 15 to 20 months under normal conditions.
You must follow a critical rule for replacement. Always replace rubber springs in complete parallel sets. Do not mix old springs and new springs. Uneven wear changes the elastic coefficients. Mixed springs create erratic vibration paths. These erratic paths destroy screening efficiency and damage the frame.
The screen frame absorbs millions of stress cycles. We advise using only high-strength bolts for all connections. Treat every bolt using a quality anti-loosening fluid. The constant shaking will easily back out untreated hardware.
Emergency repairs require specific protocols. Forbid direct heating or cutting on the main body. Thermal shock weakens the steel framing. If emergency welding becomes necessary for a frame crack, you must drill a 5mm stop-crack hole at the exact end of the fracture. You do this before grinding and welding. This hole arrests the stress concentration and prevents the crack from spreading further.
A structured schedule prevents oversight. Plant teams should follow these time-based routines strictly. Clear checklists keep everyone accountable.
Pre-start Checks: Check the screen mesh tension thoroughly. Look closely for visual damage or frayed wires. Verify all locking rings remain tight. Clear any loose debris from surrounding walkways to ensure operator safety.
During Operation: Listen carefully for abnormal impact noises. Clanking sounds indicate loose components. Monitor the electrical current stability. Visually check the machine for erratic vibration patterns or side-to-side swaying.
Lubrication Audit: Inspect the central lubrication system. Look for blockages in the lines. Check all seals for grease leaks.
Structural Integrity: Perform manual structural checks. Test bolts using a torque wrench. Inspect rubber mounts for early signs of cracking or compression fatigue.
Drive System Checks: Check V-belt tension monthly. Look for fraying or uneven wear. Always replace belts in complete sets to maintain even tension across the drive sheave.
Electrical Testing: Focus on idle machines. Conduct an insulation resistance test before restarting. Use a reliable 500V megohmmeter. The reading must stay above 0.5 megohms to prevent dangerous short circuits.
Maintenance Frequency Chart
Task Type | Component | Frequency | Key Action |
|---|---|---|---|
Visual/Auditory | Screen Mesh & Frame | Daily | Check tension, listen for clanking sounds. |
Lubrication | Exciter Bearings | Bi-weekly | Add 300-600mL ZL-3 lithium grease. |
Thermal | Roller Bearings | Weekly | Check temp rise (< 50°C above ambient). |
Mechanical | V-Belts & Bolts | Monthly | Torque bolts, inspect belt wear sets. |
Replacement | Rubber Springs | 15-20 Months | Replace in full parallel sets. |
Operators frequently encounter three main screening issues. Quick diagnosis prevents prolonged downtime. Use the guidelines below to correct these common process failures.
Particles become wedged tightly into the mesh openings. This blocks material flow completely.
Root Cause: The material particle size matches the mesh aperture exactly. They fit perfectly into the holes and get stuck.
Solution: Adjust the machine amplitude to bounce particles out. Switch to elongated hole patterns instead of square ones. You can also integrate bouncing balls or flexible polyurethane media to clear the deck automatically.
The screen mesh gets covered by fine, sticky material. It forms a solid layer over the holes.
Root Cause: High moisture content causes surface tension adhesion. The wet fines stick to the wire and bridge across the apertures.
Solution: Increase the overall vibration frequency. This breaks the surface tension. Alternatively, upgrade the machine to include heated screen decks. The heat dries the material instantly upon contact.
Good, undersize material stays on top of the deck. It discharges incorrectly with the oversized waste.
Root Cause: You have an improper feed rate. The stroke settings might be incorrect. The deck angle could be too steep, causing material to travel too fast.
Solution: Recalibrate the stroke length carefully. Adjust the operating speed of the motor. You might also need to modify the screen deck inclination to slow the material bed down.
Relying solely on visual checks leaves you vulnerable. Modern condition monitoring prevents unexpected breakdowns. Implement predictive maintenance tools to monitor your machinery continuously. Thermal imaging (thermography) easily identifies hidden hot spots inside bearing housings. Pulse Vibration Analysis systems monitor your equipment 24/7. These sensors detect micro-cracks and bearing cage wear long before human senses can.
You must understand the immense risk of aftermarket parts. Non-OEM spare parts often feature micro-millimeter tolerance deviations. These tiny discrepancies cause massive issues. An improperly sized bearing forces the exciter out of alignment. This misalignment sends destructive waves through the screen frame. This dynamic creates a severe chain-reaction mechanical failure across the entire Linear Vibrating Screen Machine.
Procurement optimization protects your maintenance budget. We highly recommend establishing Stocking Agreements or Blanket Orders directly with the original manufacturer. This guarantees rapid availability of high-wear items. You will never wait weeks for screens, belts, or rubber springs. Pre-negotiated agreements stabilize your maintenance budget and eliminate emergency purchasing fees.
A linear vibrating screen endures immense mechanical stress daily. Its longevity relies entirely on disciplined, data-driven maintenance. Operators cannot ignore basic checks without inviting catastrophic failures.
Follow exact tolerances: Never exceed 0.5mm amplitude differences between exciters.
Use correct materials: Demand C4 bearings and strict ZL-3 lithium grease.
Standardize inspections: Build daily, weekly, and monthly routines into your shift schedules.
Monitor predictively: Use thermography and vibration analysis for early warnings.
Audit your current maintenance SOPs against this guide today. Contact your manufacturer's engineering team soon. Request a professional site audit to catch hidden wear. Explore advanced diagnostic upgrades or secure an OEM spare parts agreement to protect your future productivity.
A: Screen mesh lifespan varies from weeks to months, depending entirely on material abrasion. Exciter bearings typically last 8 to 12 months under continuous use. Rubber springs usually require replacement every 3 to 6 months. A well-maintained structural screen frame generally lasts over two years before needing major overhaul.
A: Swapping standard metal screen plates for polyurethane screen panels works best. Polyurethane absorbs kinetic energy efficiently. This simple material upgrade can reduce harsh impact noise by 15 to 20 dB(A), significantly improving plant safety compliance.
A: Implement proper grounding wires directly attached to the equipment base. Ensure the ground reaches deep earth. If the process allows, you can also apply appropriate anti-static liquid agents directly to the feed material before it enters the screen.
