NDZD
Norden

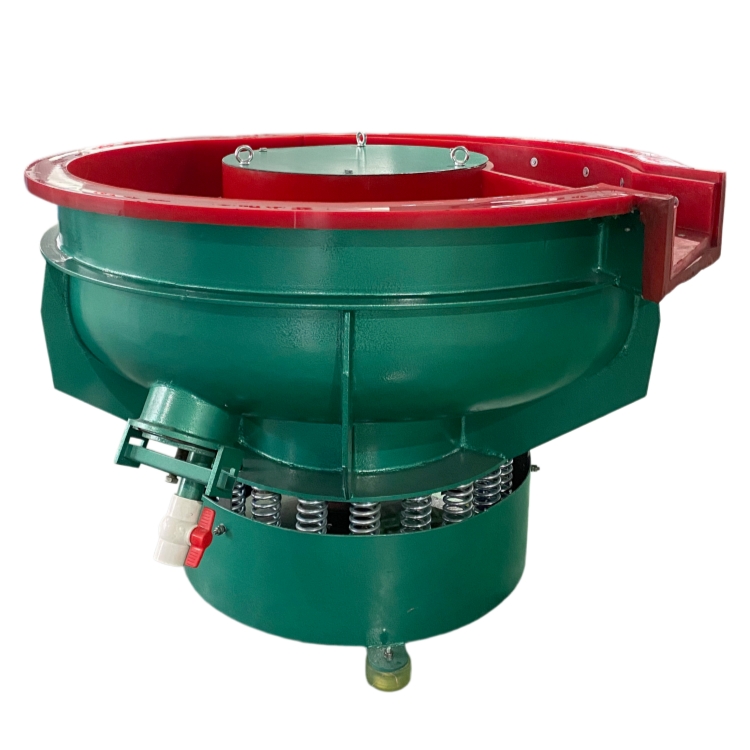

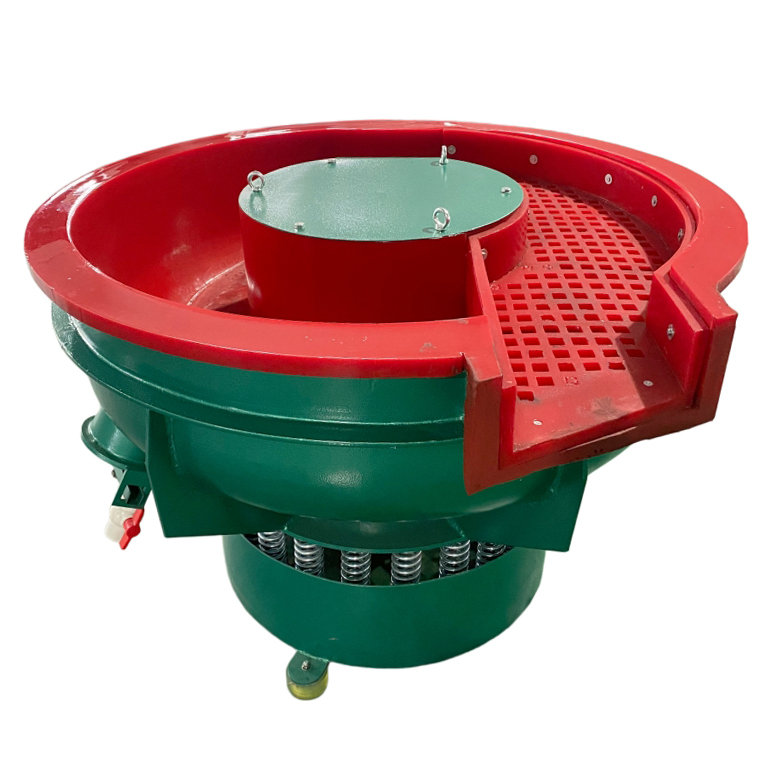

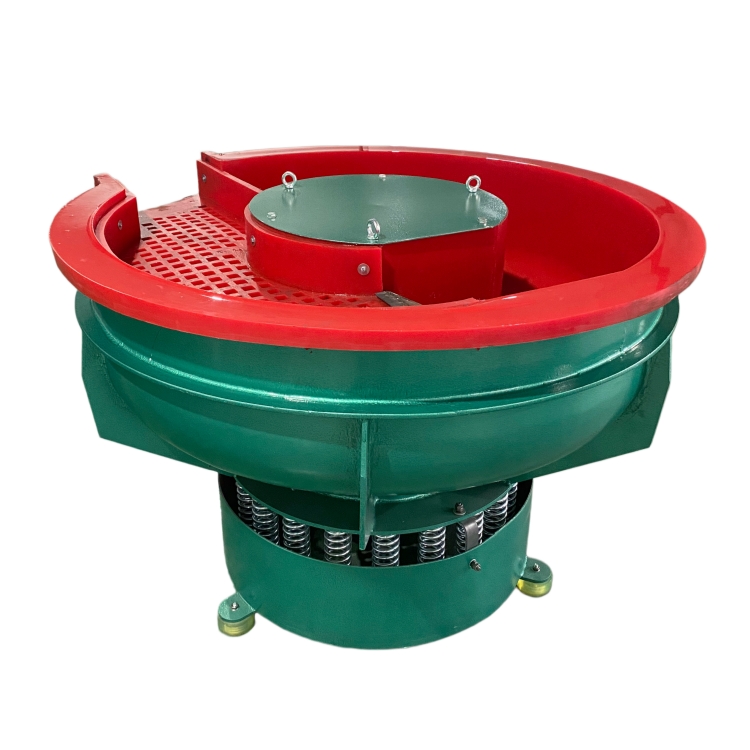

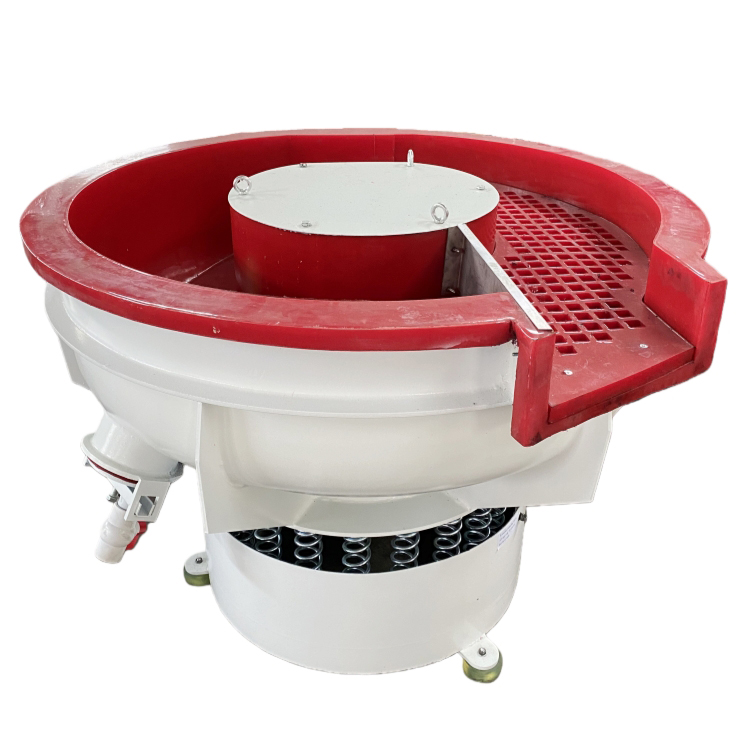

A vibratory polishing machine adopts the working principle of advanced spiral three-dimensional vibration, it consists of a circular tumbler for holding the parts and the media mixture，the container is made of ring-shaped steel plates welded together and lined with high-quality polyester PU to minimize noise and the impact of the workpiece，this bowl is connected to a motor for the drive，a network of springs balances the entire bowl.
So, you need to fill the bowl with media and parts for finishing. Once you power on the machine, then the motor will make the bowl vibrate. The media inside the bowl will start rubbing against the parts for finishing
Deburring, Chamfering, Rounding, Descaling, Smoothing, Cleaning
• Automotive—Deburring of Automotive Parts, Machined Parts.
• Hardware—Aluminum, brass, copper, stainless steel, and iron workpieces.
• Medical Equipment—Telescoping columns made of magnesium, camshafts, medical device parts.
• Stone —Jewelry Stone, Pebbles tumbling and polishing
• Wood — Dry wood deburring
• Suitable for large batch processing
• Easy to operate, User-friendly
• Large loading capacity and wide application range.

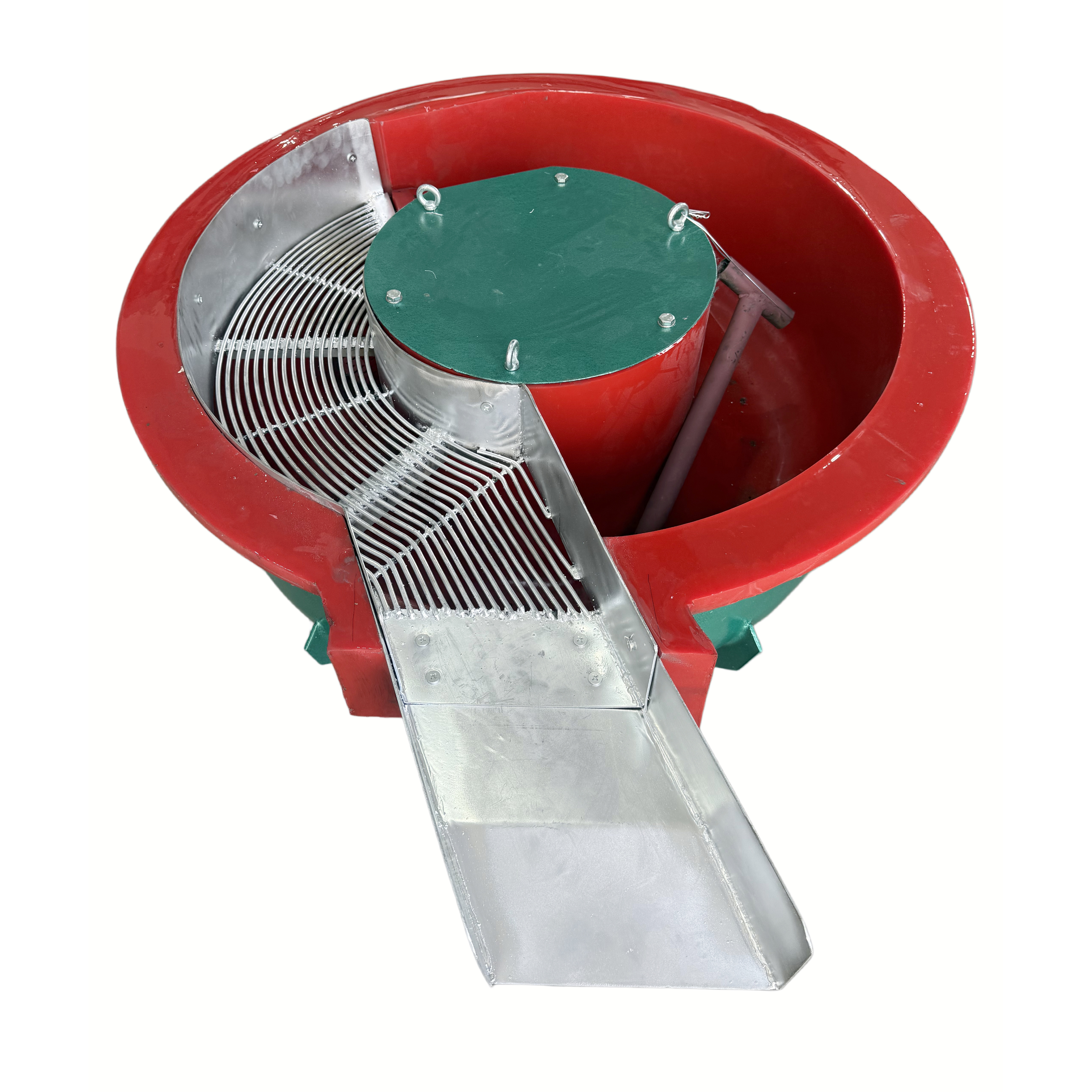

• Automatic separate polishing media and products
• It gives you the options for high level automation, helps to save time and reduce labor charges.
• They are capable of finishing large parts as well as small intricate pieces.

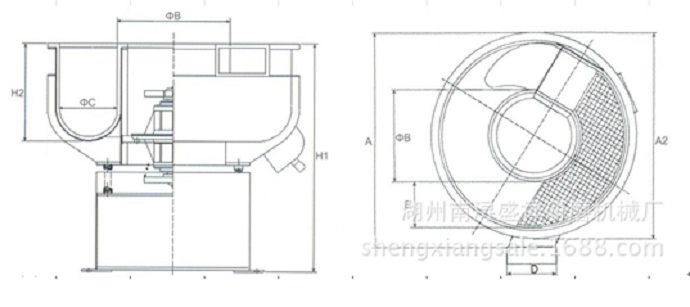

Model | 150AB | 250AB | 350AB | 450AB | 650AB |
Total volume(L) | 150 | 250 | 350 | 450 | 650 |
A(CM) | 110 | 118 | 140 | 152 | 189 |
A2(CM) | 103 | 115 | 134 | 145 | 180 |
H1(CM) | 87 | 94 | 102 | 108 | 145 |
H2(CM) | 30 | 35 | 36 | 40 | 48 |
ΦB(CM) | 45 | 52 | 62 | 62 | 89 |
ΦC(CM) | 23 | 29 | 29 | 34 | 40 |
D(CM) | 25 | 35 | 40 | 45 | 52 |
E(CM) | 23 | 29 | 34 | 36 | 40 |
Weight(KG） | 250 | 300 | 500 | 580 | 1450 |

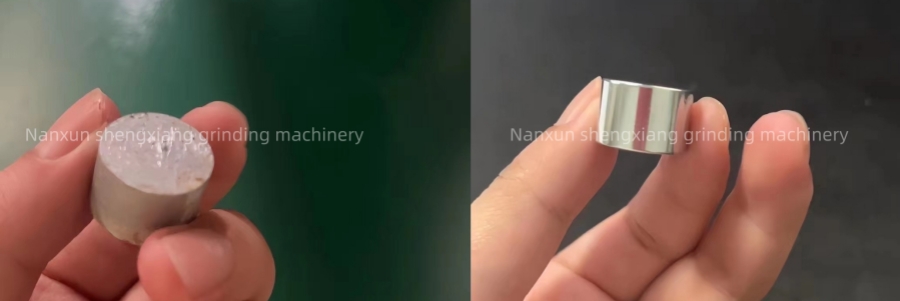

Step | Goal | Machine | Media | Time | Note |
Step 1 | Rough polishing to remove burrs | Vibratory polishing machine | Brown corundum | 30 min - 1 hour | - |
Step 2 | Repair scratches / surface smoothness | Vibratory polishing machine | Plastic Media | 30 min - 1 hour | Repair scratches, smooth and refined surface |
Step 3 | Mirror polishing | Centrifugal finishing machine | Zirconia balls | 20 min- 1 hour | Achieve high gloss mirror finish without damaging aluminum surface |
Step 4 | Drying | Vibratory dryer or centrifugal dryer | - | 10 - 20 min | - |
Note: Polishing time and results depend on the part’s geometry, burr size, and surface finish requirements. We recommend conducting a small-batch trial first to determine the most suitable polishing method.Since polishing procedures vary by part, please contact us for details so we can provide you with a customized polishing solution. | |||||
Optional accessories are available to meet your customization needs, comprehensively enhance your automation operations, reduce noise, and improve efficiency.

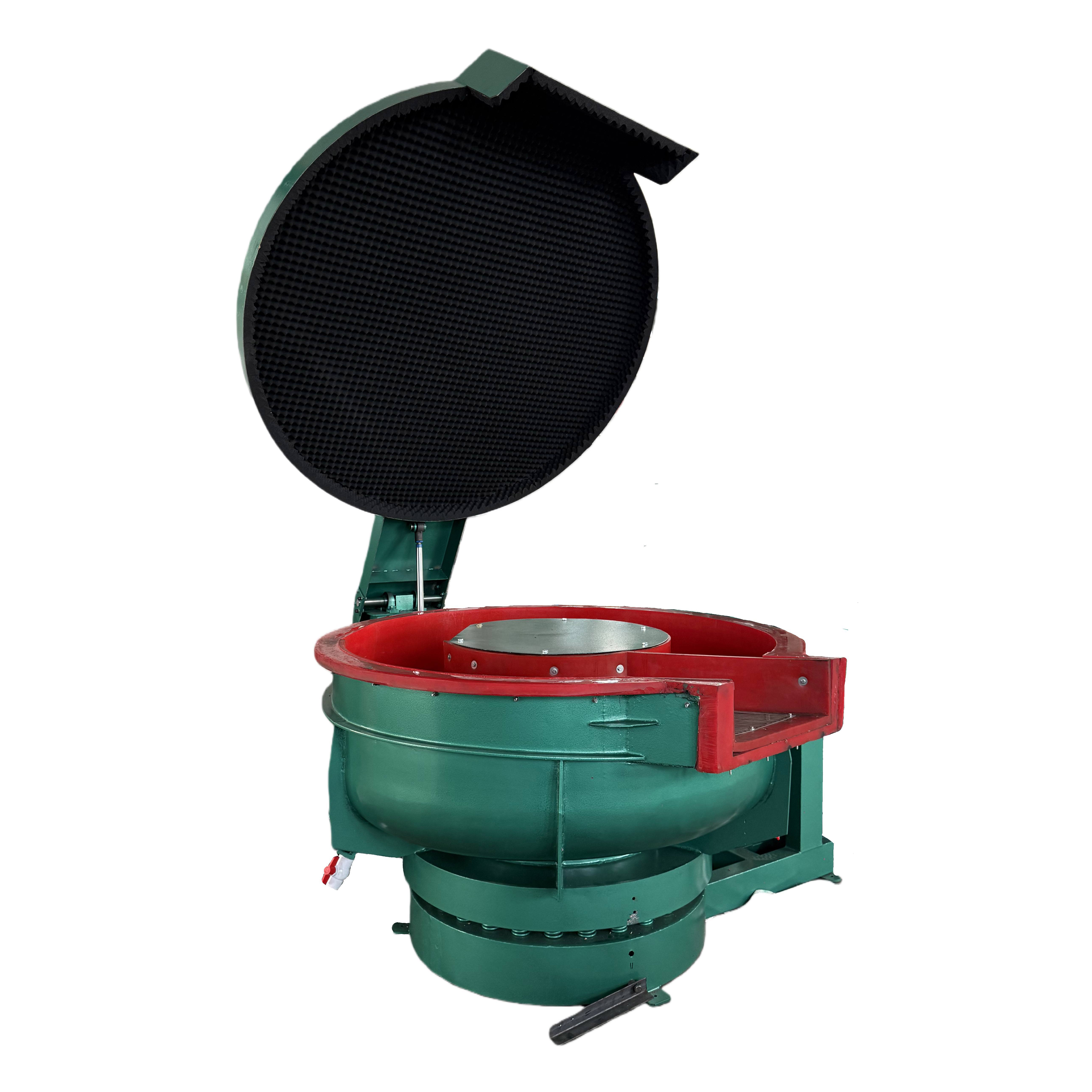

Optional Soundproof Cover
• Reduce Noise
• Prevent liquid splashing
• Waved Foam to absorb noise
• Pneumatic or manual is available
View More >>

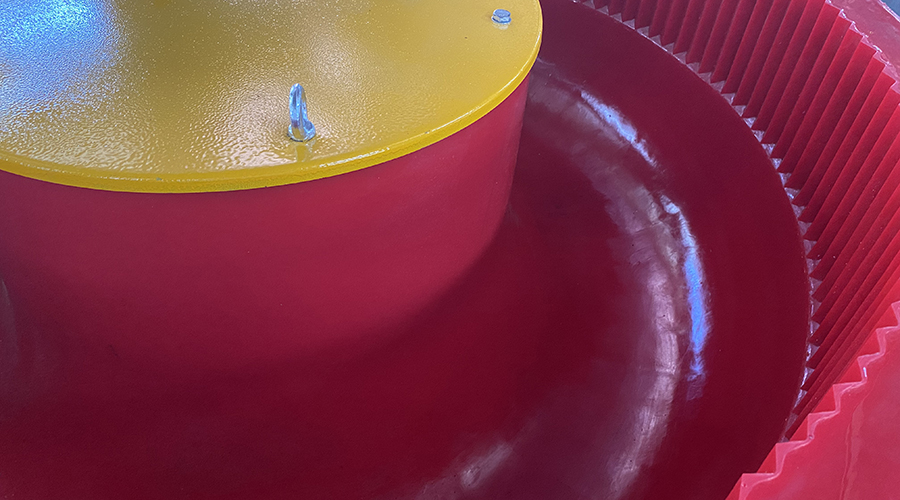

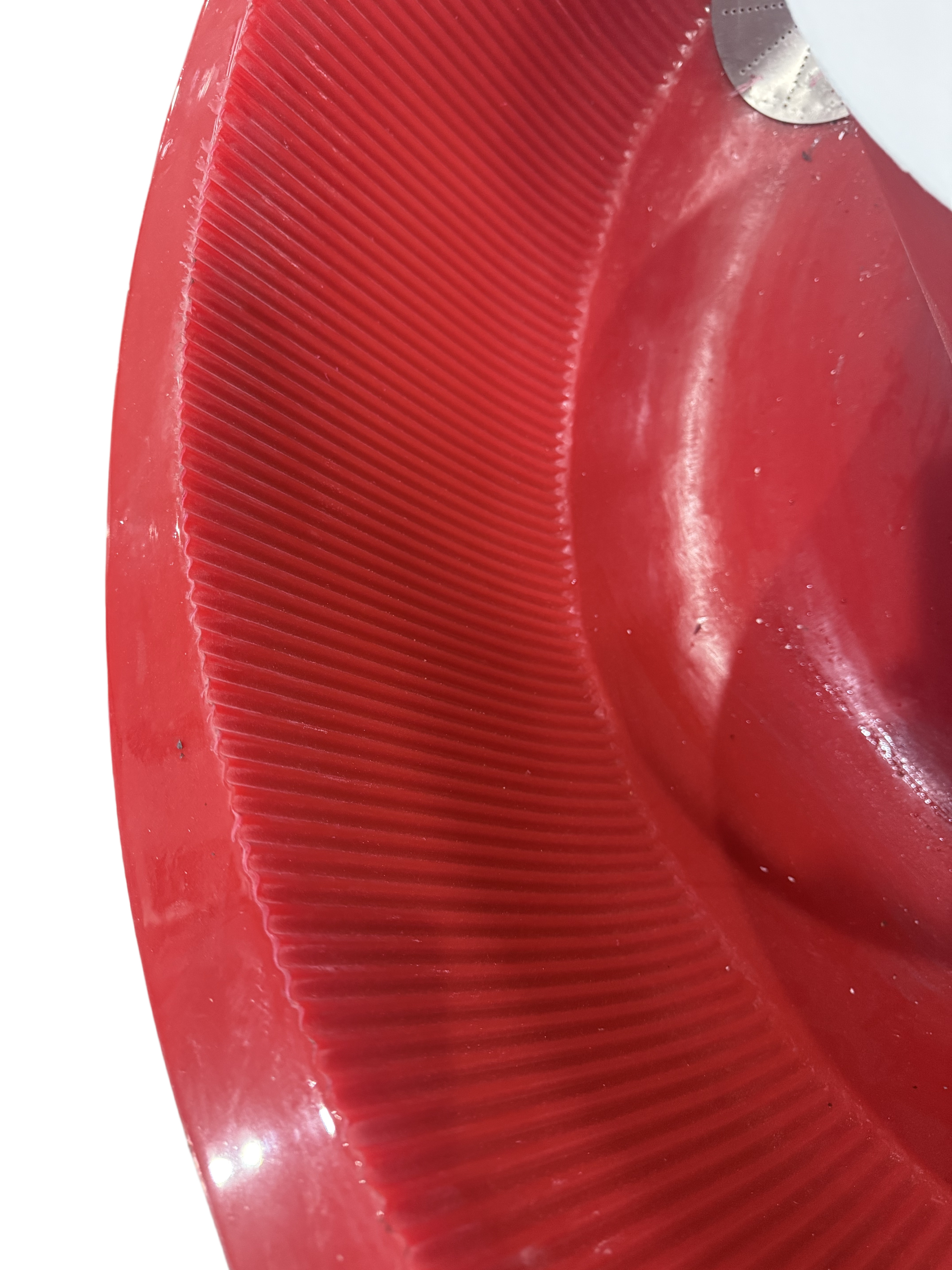

PU Lining Bowl
• Long service life
• Durable construction
• Noise reduction feature

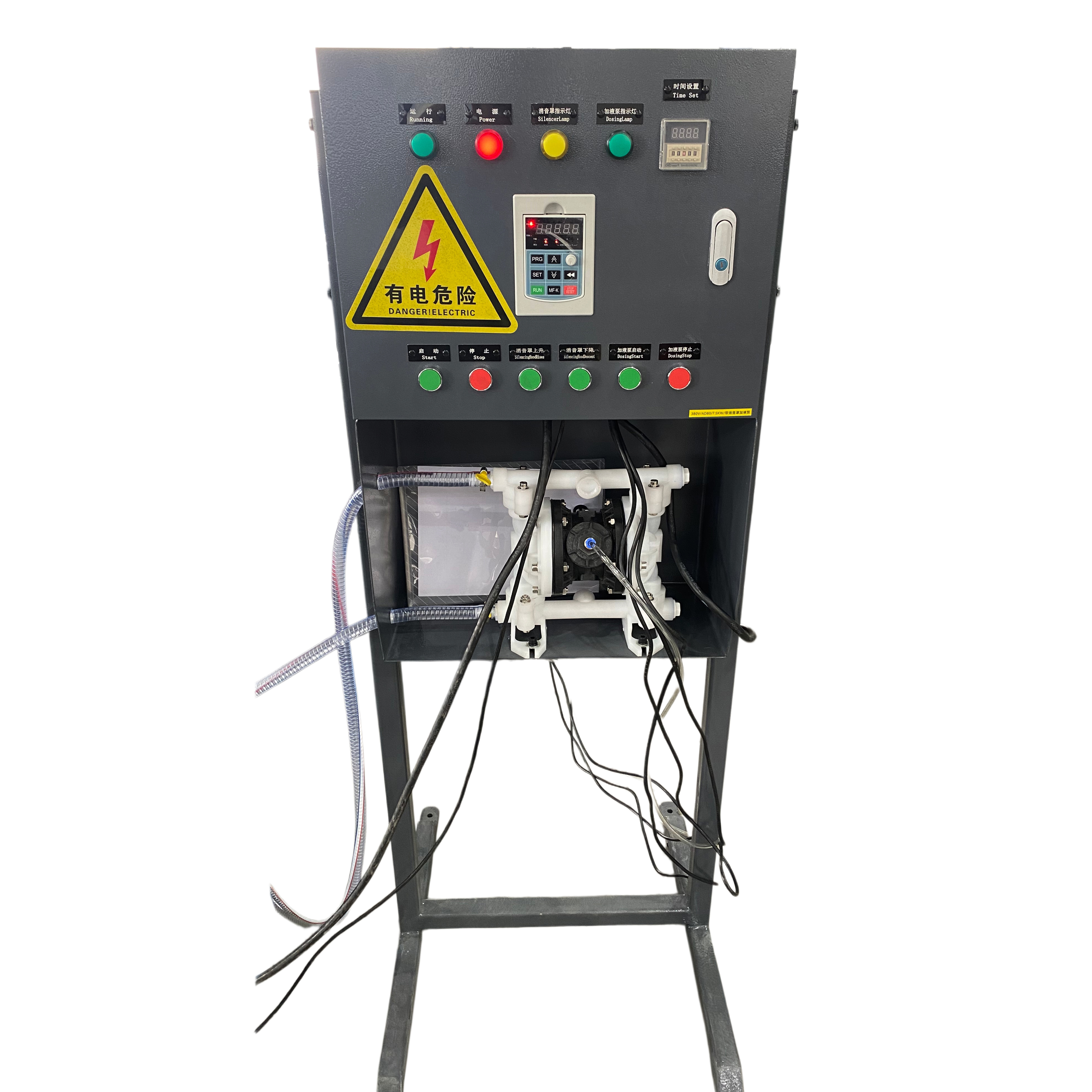

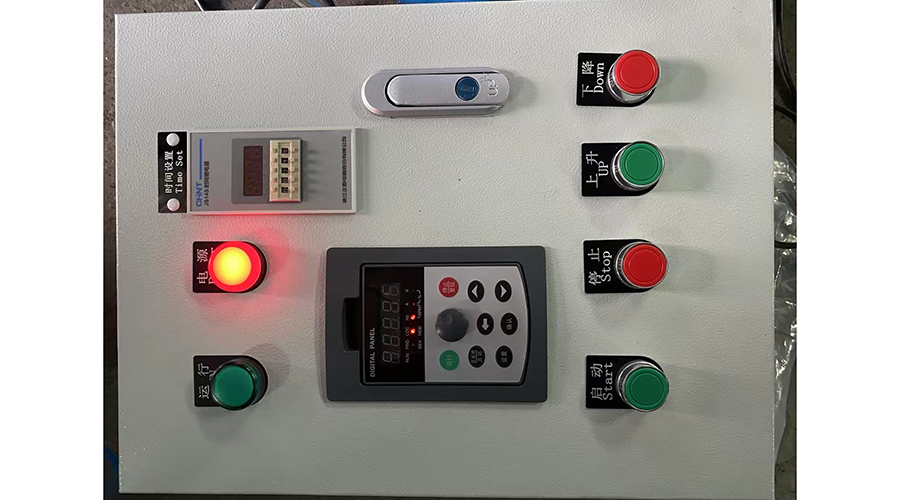

Adjustable Speed
• Flawless finishing control
• On-demand speed adjustment
• Settings for specific materials
Heavy-duty Motor
• Saves on energy costs
• Optimized motor efficiency
• Peak performance consistency
Nordon Machinery offers a wide range of polishing machines, providing you with professional surface treatment solutions, enhancing the automation of your operations, and solving your burr removal challenges
We collaborate with reliable logistics partners to provide efficient logistics and delivery services.
We offer a one-year warranty, online installation guidance, and online surface treatment solutions.
Our team of professional engineers provides expert surface treatment solutions
With over 20 years of expertise in polishing machinery, we guarantee quality and reliability
How to Choose the Right Model of Vibratory Polishing Machine?
Machine selection depends on three key factors:
- Part Dimensions — Match chamber size to your largest workpiece
- Batch Size — Consider daily processing volume requirements
- Processing Volume — Higher throughput needs larger capacity
Standard Bowl Sizes: 40L to 950L, Greater need for customization
We offer machines ranging from compact 40L models for small parts to heavy-duty 1000L units for high-volume production.
Share your part specifications — we'll recommend the optimal machine size and configuration for your application.
How long does it take to deburr using a vibratory polisher?
What Are The Various Processes Done By A Vibratory polishing machine?
What types of media can be used in a vibratory polisher?
What Is The Role Of The Media In A Finishing Machine?
