Your 3D printed parts come off the build plate looking rough — visible layer lines, support marks, and surface inconsistencies that make them look unfinished. Manual sanding is slow, inconsistent, and doesn't scale. Chemical vapor smoothing only works on specific plastics and introduces safety and compliance complications. If you're producing 3D printed parts in any volume, you need a post-processing method that is repeatable, batch-friendly, and doesn't require skilled labor.

This guide focuses on vibratory mass finishing as the primary post-processing solution for 3D printed parts — and shows you exactly how to apply it across different materials and production goals.

Table of Contents

  1. Why 3D Printed Parts Need Post-Processing

  2. The Four Post-Processing Methods Compared

  3. Why Vibratory Finishing Wins for Batch Production

  4. Step-by-Step: Finishing Plastic 3D Printed Parts

  5. Step-by-Step: Finishing Metal 3D Printed Parts

  6. Media & Process Quick Reference by 3D Printing Material

  7. Frequently Asked Questions

Why 3D Printed Parts Need Post-Processing

No matter which 3D printing technology you use — FDM, SLS, MJF, SLA, DMLS, or SLM — the as-built surface has one thing in common: it doesn't match the final product standard.

The layer-by-layer deposition process creates three categories of surface issues:

  • Layer lines — visible horizontal striations from the printing process. Most pronounced on FDM parts; still present but finer on SLS and SLA.

  • Support and scaffolding marks — rough sections where support structures attached to the build platform or overhangs.

  • Surface roughness — Ra values on as-printed parts typically range from 3.2 µm to 12.5 µm, far above what most functional or aesthetic surfaces require.

  • Residual powder or uncured resin — SLS and SLA parts often retain powder in crevices or uncured resin on surfaces.

Post-processing is not optional for production-grade parts. It is part of the manufacturing process.

The Four Post-Processing Methods Compared

Before choosing a method, understand what each one does — and what it costs you in time, consistency, and material compatibility.

1. Manual Sanding

The most accessible method: hand-sand with progressively finer grit (120 → 220 → 400 → 800 → 1200). Works for prototypes and one-off pieces.

Best for: Single prototypes, hobbyist prints, parts with complex internal geometry where no other tool can reach.

Not suitable for: Batch production, parts with tight tolerances, anything requiring consistent surface quality.

2. Chemical Vapor Smoothing

Expose ABS, ASA, or HIPS parts to solvent vapor (acetone, MEK) in a sealed chamber. The vapor slightly dissolves the outer surface, filling layer lines and producing a glossy, injection-molded look.

Best for: Aesthetic consumer parts where a glossy finish is the goal.

Not suitable for: Any part requiring dimensional accuracy (solvents distort thin walls), most engineering thermoplastics (PLA, PETG, Nylon), or production environments with safety and emissions regulations.

3. Media Blasting / Sand Blasting

Spray fine media (plastic shot, soda, or aluminum oxide) at the part surface using compressed air. Good for uniform matte finishes and paint preparation.

Best for: SLS nylon parts, paint prep, parts with complex internal passages where tumbling media cannot reach.

Risks: Edge rounding on sharp features, over-blasting thin sections, inconsistent results on large batches unless carefully timed.

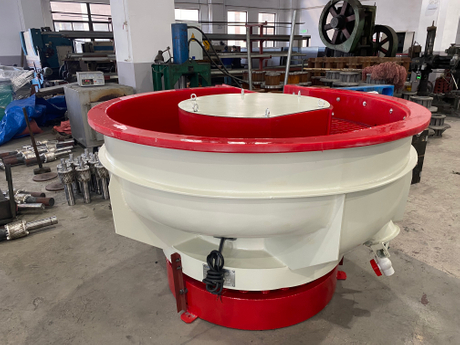

4. Vibratory Mass Finishing

Place parts in a vibrating bowl or drum with abrasive or polishing media. The vibratory motion drives media against part surfaces continuously and uniformly. One machine processes dozens or hundreds of parts simultaneously.

Best for: Batch production, consistent surface quality, deburring support marks, smoothing layer lines, scalable workflows.

Side-by-Side Comparison

Method

Consistency

Batch Scalability

Labor Cost

Material Range

Main Risk

Manual Sanding

Operator dependent

Poor

Very High

All

Inconsistency, fatigue, time

Vapor Smoothing

High (but distorts geometry)

Moderate

Low

Limited (ABS/ASA/HIPS only)

Dimensional distortion, safety/regulatory risk

Media Blasting

High

Good

Low–Moderate

Wide

Edge rounding, over-blasting

Vibratory Finishing

Very High

Excellent

Very Low

Wide (plastics + metals)

Media lodging in fine cavities; thin-wall damage

For production batches of 10+ parts: vibratory finishing is the clear choice — consistent results, minimal labor, scalable process, and compatible with the widest range of 3D printed materials.

Why Vibratory Finishing Wins for Batch Production

Here's what makes vibratory finishing the most practical post-processing method for 3D printed parts at scale:

Consistency across the batch — Every part in the bowl receives the same media contact, same pressure, same cycle time. No operator variability.

No skilled labor required — Load parts, add media and compound, set the timer, walk away. One operator can manage multiple machines.

Handles high volumes — A standard vibratory bowl processes 50–200 parts per cycle depending on part size. Centrifugal disc systems handle even higher throughput for smaller parts.

Adjustable finish level — Control the outcome by adjusting media type, size, compound, and cycle time. Same machine, multiple finish levels.

Works on nearly all 3D printed materials — From PLA and PETG to SLS nylon, DMLS stainless steel, and SLM titanium — vibratory finishing adapts with the right media choice.

Tip for thin-wall and lattice structures: Use part separators or dedicated part baskets to prevent part-on-part contact during vibratory processing. Small, fragile 3D printed parts (especially FDM with < 1mm walls) are more prone to flex and damage in high-density loads. Run lighter loads and check every 30 minutes.

Step-by-Step: Finishing Plastic 3D Printed Parts

This is the standard two-stage vibratory process for most FDM and SLS plastic parts.

Stage 1 — Layer Line Smoothing

Parameter

Setting

Machine

Vibratory finishing bowl

Media

Plastic tumbling media, cone or triangular, 2000# grit, 10–15mm

Compound

Light-duty smoothing compound or neutral cleaner, 1–2% by volume

Water

Enough to keep media and parts wet throughout cycle

Cycle Time

2–4 hours (check at 2 hours; don't over-process)

Goal

Reduce visible layer lines, smooth support marks, consistent matte surface

Stage 2 — Brightening and Drying

Parameter

Setting

Machine

Vibratory finishing bowl (or separate dry bowl)

Media

Walnut shell media, fine grade, 10–20#

Compound

Dry polishing compound (optional) or run clean

Water

None — dry process

Cycle Time

1–2 hours

Goal

Remove surface haze, brighten finish, dry the part

Post-processing checklist before packaging: Inspect each part for residual media lodged in holes, threads, or fine features. Use compressed air to blow out any trapped media. If the part will be coated or painted, wipe with isopropyl alcohol (IPA) after drying.

Step-by-Step: Finishing Metal 3D Printed Parts (DMLS / SLM / EBM)

Metal 3D printed parts — typically stainless steel, titanium, or Inconel — require more aggressive material removal to address the rough as-built surface from powder bed fusion. Use a high-energy centrifugal system for best results.

Stage 1 — Support Mark Blending and Initial Smoothing

Parameter

Setting

Machine

Centrifugal disc finisher or centrifugal barrel finisher

Media

High-alumina ceramic angular media, 20×20mm or 15×15mm

Compound

Heavy-duty cutting compound, 2–3% by volume

Water

Sufficient for slurry consistency

Cycle Time

2–4 hours; inspect every 60 minutes to avoid over-rounding edges

Goal

Remove support marks, flatten coarse layer lines, reach target geometry quickly

Stage 2 — Surface Refinement

Parameter

Setting

Machine

Centrifugal disc or vibratory bowl

Media

Plastic tumbling media, 2000# cone, 15–20mm (rinse parts and change media between stages)

Compound

Neutral or fine finishing compound, 1–2%

Water

Clean water

Cycle Time

2–4 hours

Goal

Reduce ceramic-induced scratch pattern, refine surface texture

Stage 3 — Final Polish or Coating Prep (Optional)

Parameter

Setting

Machine

Vibratory bowl or centrifugal disc

Media

Porcelain media or fine stainless steel balls

Compound

Mild burnishing compound or brightener

Water

Minimal — controlled moisture

Cycle Time

1–2 hours

Goal

Clean bright surface, ready for electropolishing, coating, or direct use

Critical: rinse between every stage. Ceramic media residue from Stage 1 will scratch the surface if carried into Stage 2. Always drain, rinse parts with clean water, and use fresh media for each stage.

Media & Process Quick Reference by 3D Printing Material

Not all 3D printed materials behave the same way. Here's a practical reference table:

3D Print Material

Printing Technology

Recommended Machine

Stage 1 Media

Stage 2 Media

Key Consideration

PLA

FDM

Vibratory bowl

Plastic 2000# cone

Walnut shell fine

Soft material — avoid aggressive ceramic. Short cycles (1–2h) to prevent over-softening.

PETG / PETG-CF

FDM

Vibratory bowl

Plastic 1500# cone

Walnut shell fine

Slightly more durable than PLA. Use aluminum-safe compound to avoid stress cracking.

ABS

FDM

Vibratory bowl

Plastic 1000# cone

Walnut shell + polishing compound

Tough but can be stress-cracked. Avoid overloading the bowl.

Nylon (PA12 / PA11)

SLS / MJF

Vibratory bowl or centrifugal disc

Plastic 1200# cone or ceramic fine

Walnut shell fine

MJF parts often have excess powder in cavities — ultrasonic pre-clean before tumbling.

Resin (SLA / DLP)

SLA / DLP

Vibratory bowl (gentle mode)

Plastic fine-cut 500#

Corn cob gentle

UV-cured resin is brittle. Use very light media and short cycles. Check for delamination risk on large flat surfaces.

Ultem / PEI (PEKK)

FFF

Centrifugal disc

Porcelain or ceramic fine

Porcelain burnishing

High-performance polymer. Requires high-energy finishing due to surface hardness. Longer cycles acceptable.

Stainless Steel (17-4 / 316L)

DMLS

Centrifugal disc or barrel

Ceramic high-alumina angular

Plastic 2000# then porcelain burnishing

Start with ceramic for support mark removal. Typical Ra reduction: from 8–12 µm as-printed to 0.8–1.6 µm after finishing.

Titanium (Ti6Al4V)

SLM / EBM

Centrifugal barrel

Ceramic SiC or porcelain fine

Plastic fine-cut

EBM surface is rougher than SLM. Use lower bowl pressure to protect thin walls. No steel media — hydrogen absorption risk.

Inconel 718

SLM

Centrifugal barrel

Ceramic SiC 15×15mm

Plastic 2000#

Extremely hard. SiC ceramic media recommended for Stage 1. Check features every 60 min to avoid over-rounding.

Maraging Steel

DMLS

Centrifugal disc or barrel

Ceramic high-alumina

Stainless steel balls or porcelain

Can be polished to near-mirror finish with stainless steel media + burnishing compound in Stage 3.

General rule for all 3D printed plastics: Start with shorter cycles and check progress frequently. 3D printed plastics are often more brittle or more flexible than their injection-molded equivalents, making them more sensitive to over-processing than machined parts of the same material.

Frequently Asked Questions

Q1: Will vibratory finishing damage my 3D printed parts?

Only if the process is wrong for the material. The two main risks are: (1) using too-aggressive ceramic media on soft thermoplastics like PLA — use plastic media instead; (2) overloading the bowl and causing part-on-part collision — always maintain proper media-to-part ratio and use part separators for fragile geometries. Run a 30-minute test cycle before full production batches.

Q2: What surface roughness (Ra) can I achieve on 3D printed parts with vibratory finishing?

Typical results depend on starting roughness and material: FDM PLA/PETG — from Ra 3.2–6.4 µm as-printed down to Ra 0.8–1.6 µm after vibratory finishing. SLS Nylon — from Ra 4.0–8.0 µm to Ra 0.8–1.2 µm. DMLS Stainless Steel — from Ra 6.0–12.5 µm as-printed to Ra 0.4–1.6 µm after 3-stage finishing. For Ra below 0.2 µm (mirror finish), electropolishing or manual buffing is typically required as a final step.

Q3: Can vibratory finishing handle parts with fine lattice or honeycomb structures?

With caution. Fine lattice structures (wall thickness < 1.5mm) can flex and fracture under media pressure. Solutions: (1) use corn cob or walnut shell media instead of hard ceramic/plastic; (2) run lighter loads (parts occupy no more than 15% of bowl volume); (3) use a dedicated parts basket to isolate fragile pieces; (4) check every 20–30 minutes during the cycle.

Q4: How do I clean residual powder or uncured resin from my 3D printed parts before tumbling?

SLS/MJF parts: use an ultrasonic cleaner with aqueous cleaner solution for 10–15 minutes before vibratory processing. This removes loose powder from holes, cavities, and fine features that would otherwise contaminate your media. SLA parts: if parts are not fully post-cured, cure them fully first — uncured resin becomes gummy in the vibratory bowl and coats the media. FDM parts: a quick air-blast or rinse removes loose debris before loading.

Q5: What happens if my parts have support structures that I can't fully remove before finishing?

Light support marks can be blended away during the first vibratory stage if they are flush with the surface. However, raised or bulky support remnants should be removed manually (cutting tool or fine sanding) before loading — otherwise the vibratory action will spread contamination across the part surface. For parts with unavoidable support contact marks, budget a longer Stage 1 cycle with coarser media to cut deeper.

Q6: Can I tumble FDM parts with water-soluble support material (PVA/Soluble BVOH)?

Yes — but remove the soluble support before tumbling, not after. Tumbling with water present will dissolve the support inside the bowl, creating a sticky slurry that coats parts and media. Soak and rinse parts in water to dissolve PVA/BVOH supports first, then dry the parts completely before loading into the vibratory bowl.

Q7: How long does the whole vibratory finishing process take for a batch?

For plastic 3D printed parts: 3–6 hours total (Stage 1 + Stage 2). For metal 3D printed parts: 5–10 hours total across three stages. Within that range, cycle time is adjusted based on how much material needs to be removed (which correlates to how rough the as-printed surface is). Finer layer height printers (0.1mm layers vs 0.28mm) require proportionally less removal time.

Q8: Do I need to adjust my 3D printing build parameters to prepare for vibratory post-processing?

A few build parameter adjustments can reduce post-processing time significantly: use a 0° or 45° raster angle (vs 90°) for easier layer line removal; orient parts to minimize surface area requiring finishing if only certain faces need to look good; for metal DMLS/SLM, discuss "as-built surface" requirements with your printing service — specifying a finer recoater speed or lower energy density can produce a smoother starting surface that finishes faster.

Need a Sample Test with Your 3D Printed Parts?

Send us your parts. Our finishing lab will run a sample cycle, document the process parameters, and report the Ra results — at no cost. We specialize in vibratory post-processing for FDM, SLS, MJF, DMLS, SLM, and SLA parts across all common materials.
