Complete Tumbling Media Selection Guide: Choose the Right Vibratory Polishing Media in 5 Steps

Choosing the wrong tumbling media costs you time, money, and surface quality. The wrong compound pairing can leave parts under-polished, over-abraded, or contaminated. This guide gives you a practical 5-step framework — no engineering degree required — so you can match media type, size, and compound to your specific part material and surface goal.

Table of Contents

1. Step 1 — Identify Your Part Material

2. Step 2 — Define Your Surface Goal

3. Step 3 — Choose Media Type

4. Step 4 — Select Media Size

5. Step 5 — Pair the Right Compound

6. Quick Reference: Media by Part Material

7. Two-Stage Polishing Recipes

8. Frequently Asked Questions

Step 1 — Identify Your Part Material

Your part material is the single most important factor. Different metals respond differently to each media type. Matching correctly prevents part damage, contamination, and unnecessary rework.

Note: For medical or aerospace parts with strict surface integrity requirements, always verify compatibility through a sample run before full production.

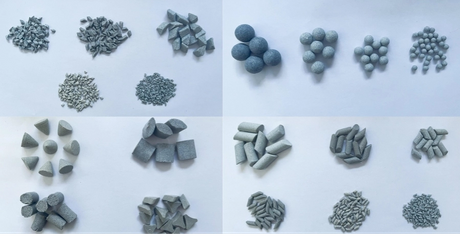

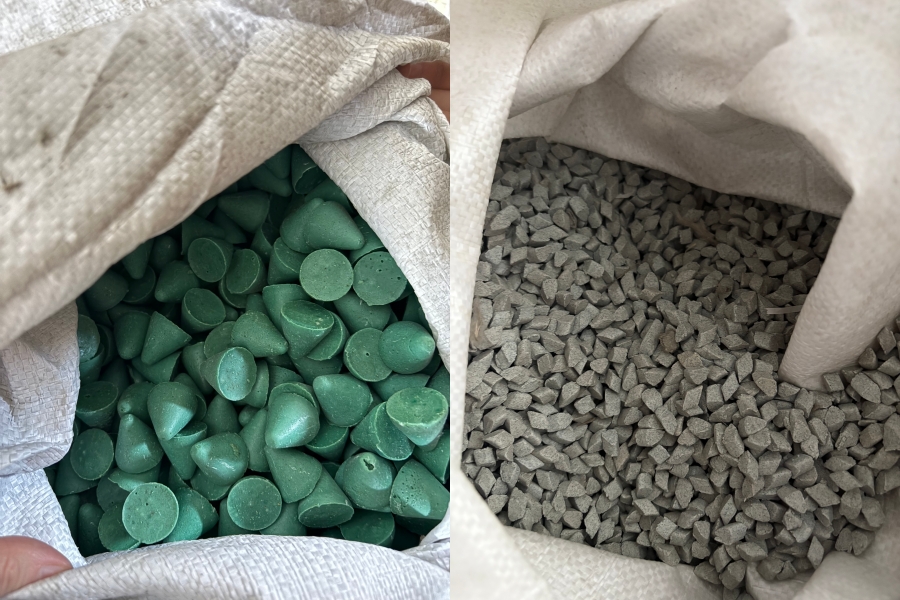

Plastic media and brown fused alumina media

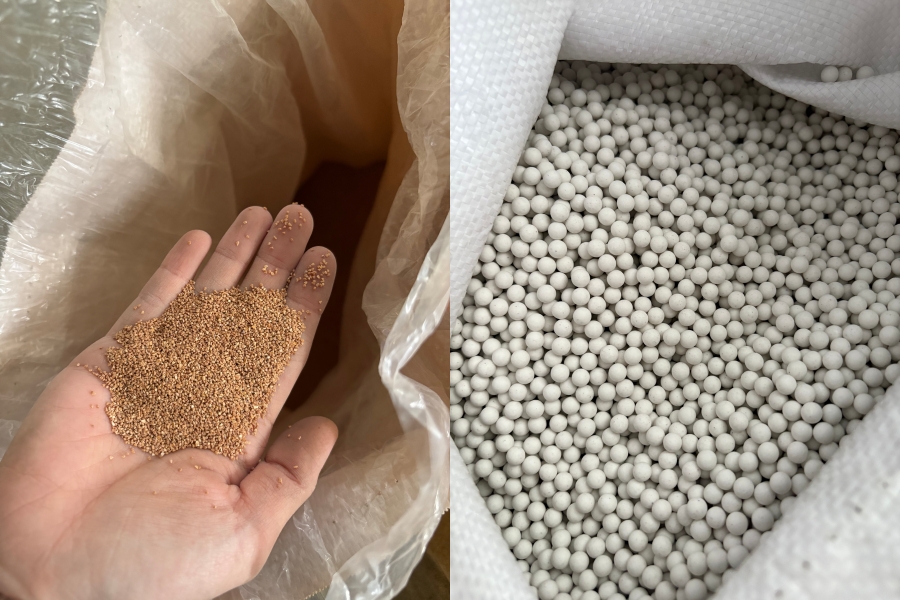

Walnut media and high-alumina ceramic media

Step 2 — Define Your Surface Goal

What do you want the finished part to look and feel like? Clarity here determines your entire process setup — media type, size, compound, and cycle time all follow from your goal.

Deburring Only — Remove flash, burrs, sprue, or sharp edges. Focus: shape correction, not appearance.

Deflashing — Clean mold lines and parting flash from injection-molded or die-cast parts. Focus: precision edge cleanup.

Descaling / Scale Removal — Strip oxide, rust, or heat treatment scale from machined or heat-treated parts.

Pre-Polish / Intermediate Finish — Smoothing surface before final buff. Focus: consistent scratch pattern.

Final Polish / Mirror Finish — Achieving Ra < 0.2 µm on visible surfaces. Typically requires 2–3 stages.

Surface Activation / Satin Finish — Matte or satin appearance on architectural or consumer parts.

Step 3 — Choose Media Type

Four main media categories cover 95% of vibratory finishing applications. Each has distinct characteristics:

1. Ceramic Media (Alumina / Silicon Carbide)

The workhorse for aggressive material removal and consistent hardness. Available in multiple compositions to match cut severity.

• High Alumina (85–99%): Fastest cut, highest durability. Ideal for heavy deburring, descaling, and steel parts.

• Silicon Carbide: Extremely hard, excellent for hard-to-machine alloys (titanium, Inconel).

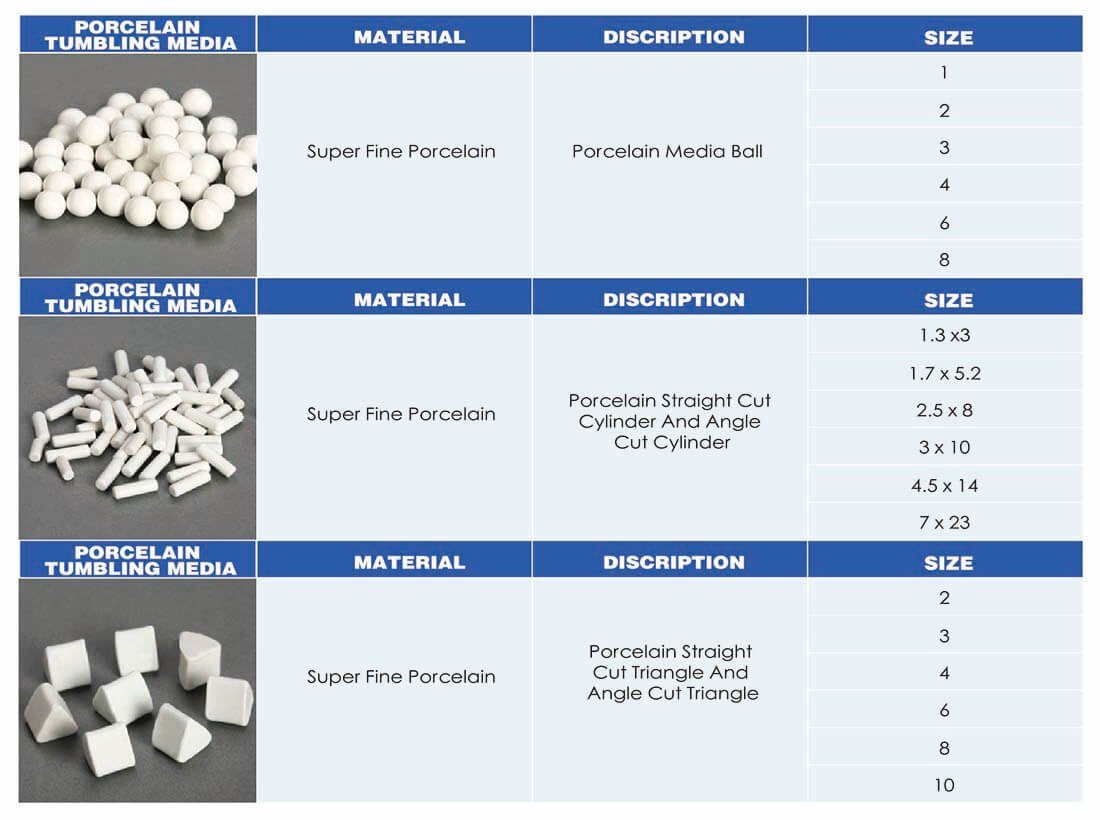

• Porcelain: Medium cut, produces bright finish. Good for stainless steel intermediate polishing.

Best for: Steel, stainless steel, titanium, hard alloys. Not recommended for aluminum (too aggressive, embeds easily).

Explore our full range: Ceramic Tumbling Media

2. Plastic Media (Polyester / Urea)

Light-cut, non-abrasive media for polishing and pre-polishing. The standard choice when part dimensional accuracy and surface softness matter most.

• Polyester (PET/PBT): Most common, cuts light, produces consistent satin finish. Compound absorption friendly.

• Urea Formaldehyde: Slightly more aggressive than polyester. Good for intermediate stages.

• Pre-polished plastic (PPX): Pre-loaded with fine polishing compound. Reduces compound addition steps.

Best for: Aluminum, brass, precious metals, mixed-material assemblies, and any part where embedding is a concern.

See options: Plastic Tumbling Media

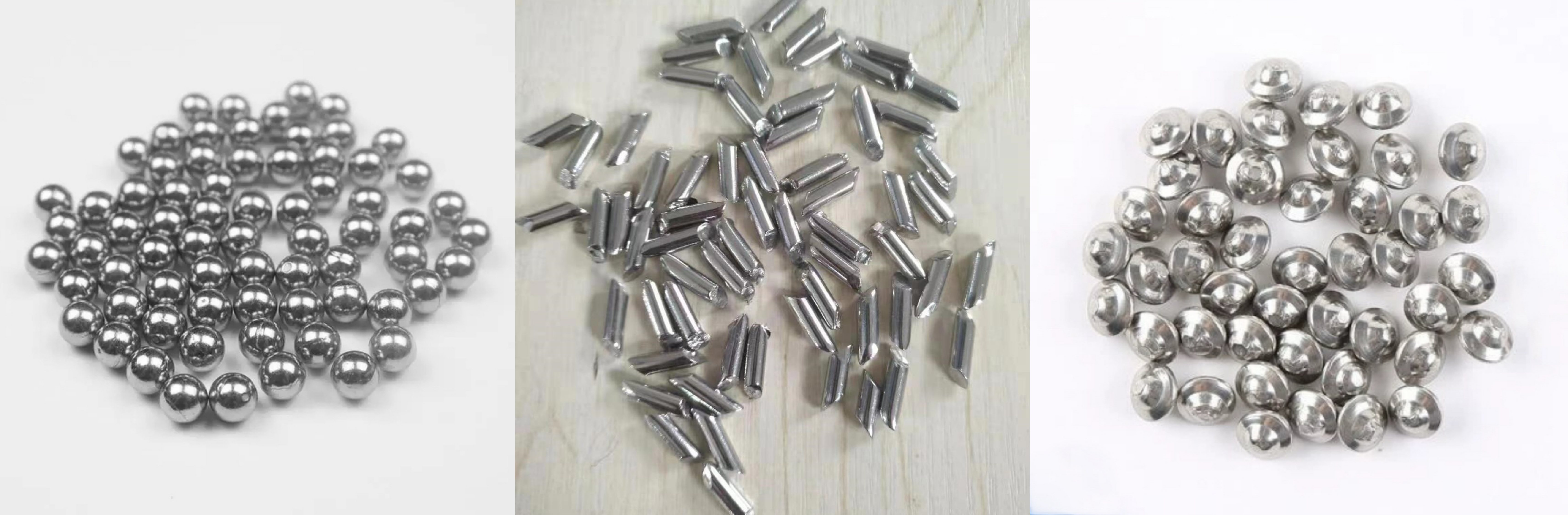

3. Stainless Steel Media

High-density media for fast, bright finishing on ferrous metals. Produces a distinctive luster difficult to achieve with ceramic or plastic alone.

• Shapes: Balls (CB), Diac balls, cylnders, stars — different shapes reach different part geometries.

• Cut level: Medium to high depending on size and shape.

• Corrosion risk: Use rust-inhibiting compound for carbon steel. Not needed for stainless steel parts.

Best for: Stainless steel, carbon steel final polishing, and parts that need high luster without long cycle times.

View products: Stainless Steel Tumbling Media

4. Organic / Natural Media

Biodegradable, gentle media for polishing soft metals, precious metals, and parts where contamination is unacceptable.

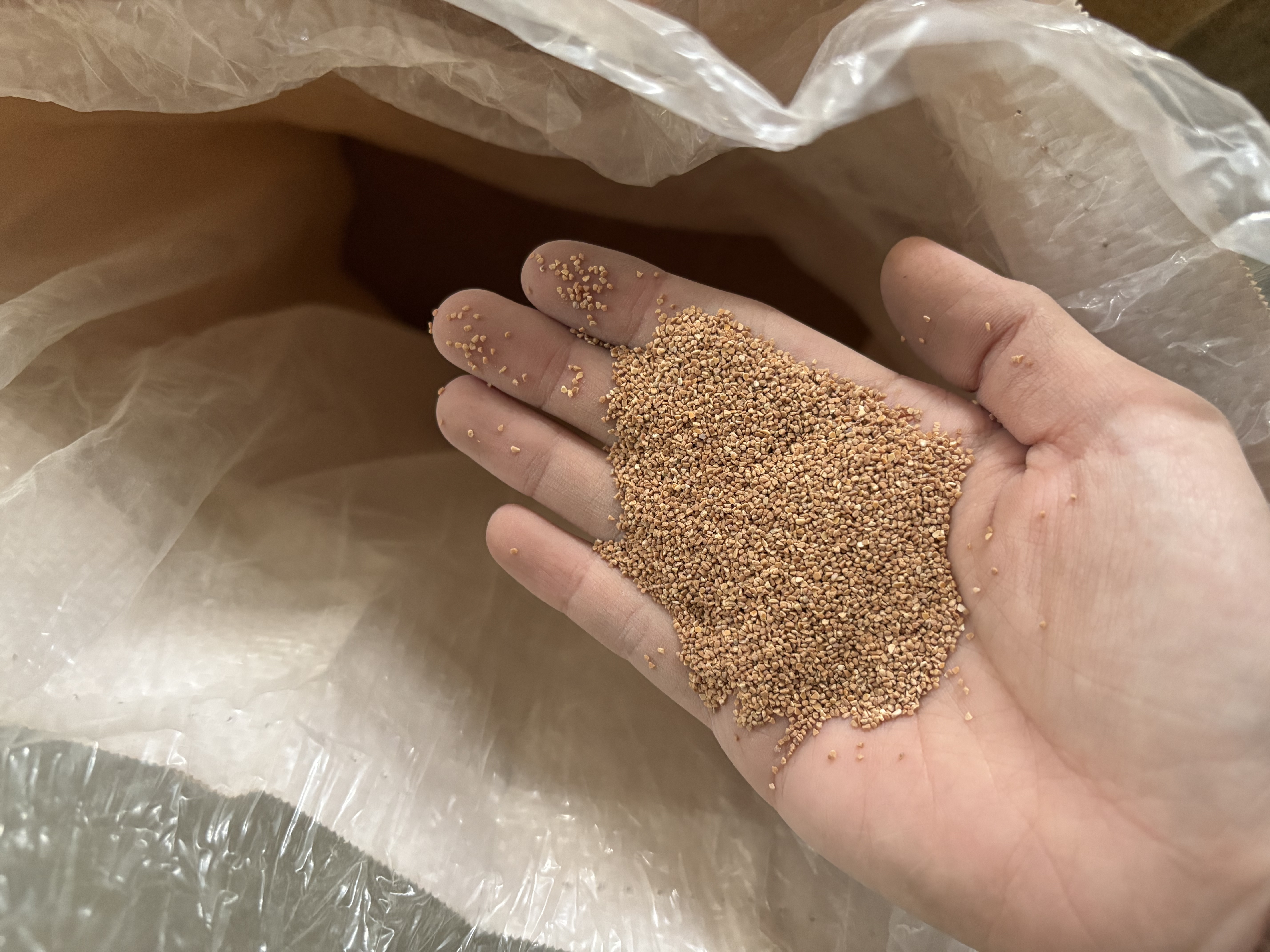

• Walnut Shell (ground): Gentle polishing, good for brass, gold, silver, aluminum. Absorbs compound well.

• Corn Cob: Very gentle, often used as drying media or final polish for delicate parts.

• Coconut Shell: Similar to walnut, slightly more angular cut.

Best for: Precious metals, delicate parts, medical implants (biocompatibility), and green/sustainable manufacturing.

Media Comparison Table

Step 4 — Select Media Size

Media size is determined by three factors: hole/bore diameter, part geometry, and batch size. Getting this wrong means parts get stuck, media gets trapped, or surface coverage is uneven.

The Core Rule: Hole Diameter Formula

For parts with holes, bores, or cavities:

Rule of thumb: Never use media larger than 1/3 of the smallest hole diameter in your part. For threaded parts, use media ≤ thread pitch diameter.

Geometry Considerations

• Deep pockets / blind holes: Use smaller sizes to ensure complete coverage at the bottom.

• Complex 3D shapes: Mix 2–3 size fractions (e.g., 60% standard + 40% fine) for better reach into recesses.

• Flat parts / washers: Standard angular media works. Avoid round media — they skip over flat surfaces.

• Heavy parts (mass > 5kg): Use higher-density media (ceramic/stainless) to maintain vibratory action.

Batch Size Ratio

Parts should be fully submerged but not packed tightly. Tight packing = reduced friction = poor surface contact = uneven results.

Step 5 — Pair the Right Compound

Compound is the liquid or paste that carries abrasive or lubricating action. The media transports it; the compound does the chemical-mechanical work. Mismatched compound-media pairings waste both.

Compound Categories

Key tip: Never use steel-specific lubricants with aluminum parts — they promote galvanic corrosion and surface staining. Always use aluminum-safe compounds (ALU series).

Quick Reference: Media Selection by Part Material

Use this table as your day-to-day lookup for common part materials:

Two-Stage Polishing Recipes: Real Process Examples

These are proven two-stage setups used in production environments. Adapt sizes to your part geometry.

Recipe 1 — Stainless Steel Precision Parts (Burr Removal + Bright Finish)

Stage 1: Deburring

• Media: Ceramic high alumina angular, 4×6mm (mixed)

• Compound: Neutral cleaning compound, 2–3% by volume

• Time: 2–3 hours

• Goal: Remove all visible burrs and flash

Stage 2: Bright Polishing

• Media: Stainless Steel balls (CB), 3–5mm

• Compound: Steel brightener + rust inhibitor, 1–2% by volume

• Time: 3–5 hours

• Goal: Mirror-like finish, Ra < 0.4 µm

Recipe 2 — Aluminum CNC Parts (Pre-Polish + Final Satin)

Stage 1: Pre-Polish

• Media: Plastic polyester triangular, 3–5mm

• Compound: Aluminum-specific compound (ALU series), 2% by volume

• Time: 3–4 hours

• Goal: Consistent scratch pattern, no embedding

Stage 2: Final Satin Finish

• Media: Plastic fine-cut polyester, 1.5–3mm

• Compound: Fine finishing compound, 1% by volume

• Time: 2–3 hours

• Goal: Uniform satin finish, Ra < 0.3 µm

Recipe 3 — Brass Watch Components (Gentle Polish + Luster)

Stage 1: Scale & Flash Removal

• Media: Walnut shell medium, 2–4mm

• Compound: Neutral degreaser, 2% by volume

• Time: 1–2 hours

• Goal: Clean surface, no damage to thin sections

Stage 2: Final Polish

• Media: Corn cob fine + polishing compound paste

• Compound: Brass brightener, minimal quantity (avoid over-wet)

• Time: 1–2 hours

• Goal: High luster, no surface distortion

Frequently Asked Questions

Q1: How do I know when to switch from deburring to polishing stages?

When visual inspection shows all burrs and flash are removed and the surface has a uniform scratch pattern. A common test: run a cotton swab inside holes and bores — if it picks up no debris, you're ready for the next stage.

Q2: How long does tumbling take? Can I speed it up?

Standard cycle times range from 2 to 8 hours depending on material, removal depth needed, and media type. To speed up: use more aggressive media (ceramic vs. plastic), increase compound concentration slightly, or add media weight ratio. However, rushing increases the risk of part damage — for production batches, batch sampling before full run is always recommended.

Q3: Can I use ceramic media on aluminum parts?

Not recommended. Ceramic media is too aggressive for aluminum — it causes embedding (tiny ceramic particles embedded in the soft aluminum surface), surface marring, and excessive material removal. Use plastic media with aluminum-safe compound for aluminum parts.

Q4: How often should I replace the media?

Ceramic media typically lasts 100–300+ production cycles before significant size reduction. Plastic media: 50–150 cycles. Organic media: 20–50 cycles. Replace when: surface finish quality drops despite correct compound use, cycle times are increasing significantly, or media has rounded significantly (angular → round over time).

Q5: What compound concentration is correct?

Start at 1–3% by volume (1–3 liters of compound per 100 liters of water, or per 100kg of media). Too much compound creates a lubricating film that reduces cutting action. Too little causes drying, part staining, and media sticking. Adjust based on results — increase for brighter finish, decrease for faster cut.

Q6: Can I tumble parts with holes smaller than 3mm?

Yes, but use micro media (0.5–2mm) and ensure the hole is not blocked. Pre-check by running media alone through the bowl without parts for 10 minutes — if media exits freely, it's safe. For threaded holes smaller than 2mm, consider manual deburring or ultrasonic cleaning instead of vibratory finishing.

Q7: How do I prevent part-to-part collision damage?

Use proper part-to-media ratio (parts should never exceed 20% of total media volume), separate heavy and light parts into different runs, and consider using a parts separator or basket insert for fragile components. If batch size is small, adding dummy parts (unfinished pieces of the same material) helps maintain consistent media-to-part contact.

Q8: What's the difference between vibratory and centrifugal tumbling?

Vibratory tumbling (our focus) uses a bowl that vibrates in 3 dimensions, creating gentle media-part interaction. It's slower but better for complex geometries, larger parts, and mixed batch sizes. Centrifugal tumbling (disc or drum) uses high-speed rotation for faster material removal — better for high-volume simple parts but harder on delicate geometries. Most precision finishing jobs are best served by vibratory.

Q9: How do I dispose of or recycle used media?

Ceramic and stainless steel media can often be recycled through metal recycling programs. Plastic media can be collected and recycled through industrial plastic waste services — check local regulations. Organic media (walnut shell, corn cob) are biodegradable and can often be composted or used as industrial waste cover. Never drain compound-contaminated water into drains — use a settling tank or professional waste management service.

Q10: My parts are coming out with a gray/rainbow tint — what's wrong?

Gray tint usually means compound residue or embedded media particles. Solution: run a clean water rinse cycle without compound (30 min), then a light compound "flash" cycle with fresh compound. Rainbow iridescence on stainless steel typically indicates heat discoloration or compound interaction with surface chromium — a dilute citric acid rinse (5% solution, 15 min) followed by clean water rinse usually restores surface. Always verify with a sample run when changing compound brands.
