Vibratory Polishing Machine Maintenance Guide: 8-Step Checklist to Prevent Downtime and Damage

You installed a vibratory polishing machine. It runs smoothly for six months. Then a grinding noise starts. Parts come out scratched. The liner has worn through to the metal shell.

Every one of those problems is preventable — with a routine maintenance check that takes under 30 minutes.

This guide gives you a complete vibratory polishing machine maintenance checklist, from inspecting the PU liner to lubricating bearings and checking electrical connections. Whether you run a VBS-series standard vibratory polishing machine, a square vibratory polishing machine for large workpieces, or a magnetic polishing machine for fine-hole finishing, the core maintenance principles apply. Follow this checklist every month and you will extend machine life, protect part quality, and avoid costly unplanned stops.

1. Why Vibratory Polishing Machine Maintenance Matters

Regular maintenance is not optional if you want consistent finishing quality and a machine that lasts more than a few years. In our 20+ years supplying vibratory polishing equipment to factories in North America, Europe, Southeast Asia, and the Middle East, the most common cause of premature machine failure we see is simple: neglected maintenance.

Without routine checks, four problems cascade quickly:

• Part damage: Worn or hardened PU liners develop rough patches that scratch or dent workpieces — sometimes beyond re-work.

• Water and compound leaks: Cracks in the bowl or worn drain bungs allow slurry to escape, creating safety hazards and wasting grinding compounds.

• Bearing failure: Bearings that run dry or with contaminated grease generate heat, vibration, and eventual seizure — a costly repair that often damages the motor as well.

• Media lodging: Misaligned or worn bowl walls trap media and parts in dead zones, forcing you to shut down and manually clear the machine.

A single bearing failure can cost $800–$2,000 in parts and labor. A full bowl reline runs $1,500–$4,000 depending on machine size. Monthly inspections take 30 minutes and catch both problems before they develop. The math is obvious.

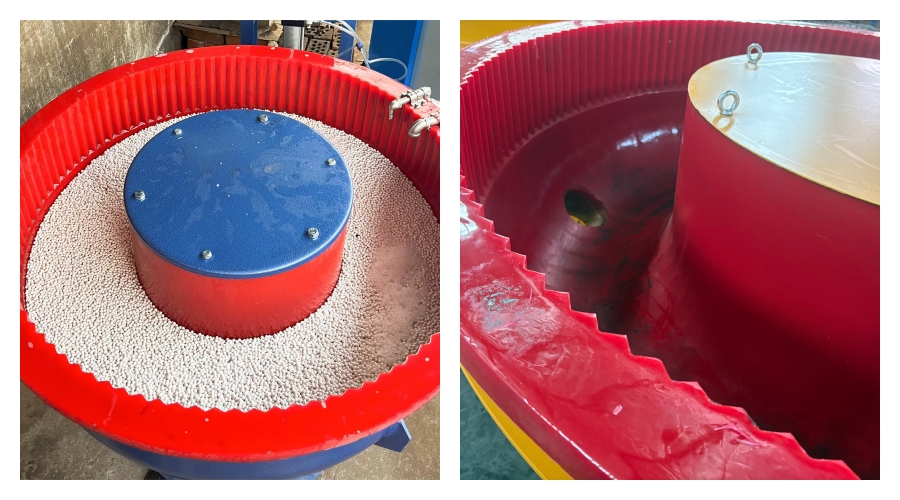

2. PU Liner Inspection — The Most Critical Check

2.1 What the PU Liner Does

The polyurethane (PU) liner lines the interior of your vibratory polishing bowl. It protects the steel shell from constant impact by media and workpieces. Without it, the bowl would wear through in weeks. The liner also affects finishing action — its hardness, thickness, and surface condition directly influence how media and parts move inside the bowl.

2.2 How to Inspect the Liner — Three Methods

Method 1: The Nail Test

Drive a finishing nail gently through the liner until it contacts the steel shell. Measure the penetration depth. If the remaining liner thickness is less than 3–6 mm (1/8"–1/4"), schedule a reline before the metal is exposed. Exposed metal accelerates wear on everything in contact with it and can damage your media.

Method 2: Visual and Tactile Inspection

Run your fingers along the bowl walls, especially near the bottom and around the drain area. Feel for:

• Hardened or glazed patches (the PU has lost elasticity)

• Deep gouges or scratches deeper than 2 mm

• Cracks radiating from bolt holes or the drain outlet

• Areas where the liner has delaminated or separated from the steel shell

Method 3: Durometer Hardness Test

A Shore durometer measures the hardness of the PU. New liner material typically reads 70–85 Shore A. As it ages and compounds penetrate the surface, hardness increases and the liner becomes less resilient. If readings are consistently above 90 Shore A across multiple test points, the liner has hardened and should be replaced — even if thickness is still adequate.

2.3 Expected Liner Lifespan

Liner life varies with operating conditions. These are general ranges for industrial vibratory polishing machines:

2.4 Temporary Repair for Minor Damage

Small holes, gouges, or scratches can sometimes be patched with industrial urethane or epoxy compound as a temporary measure. This extends liner life until a scheduled reline. Important notes:

• Clean and dry the damaged area thoroughly before applying any patch compound.

• Mark patched areas on your maintenance log — monitor them closely for separation.

• Temporary patches are not a substitute for a full reline. If the bowl has cracked through to the shell, replacement is the only safe option.

3. Bearing Lubrication — Prevent Heat and Seizure

The main drive bearings and motor bearings are the most mechanically stressed components in a vibratory polishing machine. Improper lubrication is the leading cause of bearing failure. Over-greasing is as harmful as under-greasing — excess grease builds pressure, generates heat, and forces contaminants into the bearing race.

3.1 Grease Type

Use a lithium-complex or lithium-based EP (extreme pressure) grease rated for industrial machinery. Recommended options:

• Standard / general use: Mobilux EP 2, Shell Gadus S2 V220 2, or equivalent

• High-temperature or continuous operation: Mobil SHC 220, Klüberplex BEM 41-132, or Mobil XHP 222

• Avoid automotive greases not rated for industrial machinery — they break down faster under vibratory stress

3.2 Lubrication Schedule

3.3 Signs of Bearing Wear

Listen to the machine during operation. Bearing problems almost always announce themselves through sound and vibration changes before they become catastrophic:

• Grinding or rasping noise: Metal-on-metal contact, usually from contaminated grease or loss of lubrication film.

• Whining or high-pitched tone: Often indicates a worn bearing race or rolling elements.

• Irregular vibration: Localized vibration that is not uniform across the bowl surface, especially when the bowl is empty.

• Excessive heat: If the bearing housing is hot to the touch (above 60°C / 140°F), stop the machine and investigate before continuing.

If any of these signs appear, do not wait for the next scheduled maintenance. Inspect the bearings immediately. Replacing a bearing today costs a few hundred dollars. Waiting until it seizes may require replacing the motor or the entire drive assembly.

4. Daily and Weekly Operational Checks

Beyond the monthly inspection checklist, your operators should perform quick checks before or after each shift. These take less than five minutes and catch problems early.

Before Starting the Machine

• Check the drain bung: Ensure it is fully closed and not cracked. An open or leaking drain bung causes immediate compound loss and creates a slip hazard on the floor.

• Verify compound levels: Check that your compound pump is primed and dosing correctly. Incorrect compound concentration changes finishing speed and can accelerate liner wear.

• Inspect the bowl load: Confirm that the ratio of media to parts matches your process sheet. Overloading the bowl reduces finishing efficiency and causes parts to collide excessively, creating scratches and dimensional errors.

• Check electrical connections: Look for loose cables at the control box, motor junction box, and variable frequency drive (VFD). Vibration loosens connections over time.

After Shutting Down

• Clean the screen and separator (if equipped) to prevent media and part accumulation that restricts drainage.

• Rinse compound residue from the bowl interior with clean water, especially if the machine will sit idle for more than 48 hours. Dried compound is difficult to remove and affects pH balance on restart.

• Check for loose bolts on the bowl clamping mechanism, soundproof cover mounts (if applicable), and motor mounts. Tighten as needed.

5. Water and Compound System Maintenance

Wet vibratory polishing relies on a controlled compound solution to achieve consistent finishing results. Neglecting the water-compound system reduces finishing quality and causes corrosion inside the bowl.

• Check compound concentration with a refractometer at least twice per shift. Deviation from the target Brix reading indicates the dosing pump needs adjustment or the compound batch needs replacement.

• Inspect all hoses and fittings for cracks, leaks, or blockages. Replace hoses that show hardening or surface cracking — they are a chemical resistance issue waiting to happen.

• Drain and flush the compound tank at least once per week if running daily. Sludge buildup at the bottom reduces effective compound concentration and creates uneven finishing results.

• Clean the spray bar nozzles monthly to remove scale and compound residue. Clogged nozzles cause uneven coverage and visible finishing inconsistencies on parts.

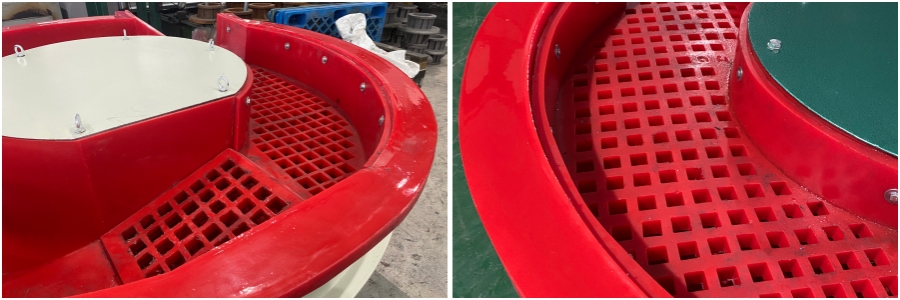

6. Checking the Separator Unit (If Equipped)

If your vibratory polishing machine is equipped with a built-in separator (common on our Vibratory Polishing Machine with Separator models), the separator mechanism requires its own maintenance attention.

• Inspect the separator screen mesh for tears, deformation, or blinding (media stuck in the openings). A damaged screen allows parts to escape into the media return, creating extra wear and part loss.

• Lubricate the separator drive mechanism (chain, gears, or belt) according to the separator manual. Check tension on drive chains and replace if slack or worn.

• Verify separator speed: Run a quick parts-media separation test. If parts are not fully separated from media on the first pass, adjust the oscillation frequency or check for mechanical binding.

• Check the media return chute for blockages that could cause media to accumulate and create overflow conditions.



7. Media Condition Check

Media condition directly affects finishing quality. Worn, glazed, or contaminated media increases cycle time and can damage workpiece surfaces.

Inspect media monthly for these conditions:

• Glazing: Media surfaces appear shiny and smooth rather than sharp. Glazed media cuts slowly and increases cycle time. Restore by running a load of fresh, aggressive media for one cycle, or replace entirely.

• Fines and dust accumulation: Fine media particles and compound residue accumulate over time, filling gaps between larger media and reducing cutting efficiency. Screen out fines regularly using a magnetic separator or sieve.

• Breakage and size reduction: Ceramic and plastic media break down with use. If average media size has decreased by more than 30%, replenish with fresh media. Do not mix significantly different media sizes in the same bowl.

• Contamination: If switching between material types (e.g., from steel to aluminum parts), flush the bowl and media to prevent cross-contamination. Residual iron in media used for aluminum parts can cause staining and galvanic reactions.

8. Electrical and Safety Checks

• Inspect the emergency stop button monthly: press it to confirm the machine stops immediately, then reset and restart normally.

• Check the grounding connection on the machine frame. Poor grounding is a safety hazard and can cause electrical interference with the VFD and control panel.

• Verify VFD parameters are stable. If the motor draws more amperage than the nameplate rating, investigate the cause (mechanical binding, electrical fault, or incorrect parameter settings).

• Check door/lid safety interlocks (on models with soundproof covers or enclosed bowls) to confirm they cut power to the drive motor when opened.

Complete Maintenance Schedule

Print this table and post it near the machine. Assign each task to a named operator so nothing gets skipped.

Frequently Asked Questions

Q: How often should I reline the PU bowl on my vibratory polishing machine?

It depends on usage. Light-duty operations (under 4 hours per day) typically get 5–8 years from a liner. Heavy-shift operations (8–16+ hours) may need relining every 1–3 years. Inspect the liner monthly using the nail test and durometer. Replace when thickness drops below 3–6 mm or hardness exceeds 90 Shore A. Read our Vibratory Polishing Machine product page for standard liner specifications.

Q: Can I use my vibratory polishing machine without compound?

Yes — this is called dry vibratory finishing. Dry processing uses minimal liquid (sometimes none) and is common for deburring, edge radiusing, and pre-polishing steps. However, wet processing with compound achieves higher polishing quality, especially for final surface finishing. Some materials (certain aluminum alloys, brass) should always be processed dry to avoid chemical reaction with water-based compounds. If you are not sure, run a sample batch first.

Q: The bowl is vibrating unevenly. What should I check?

Uneven vibration is usually caused by one of three issues: (1) an unbalanced load — too many parts on one side of the bowl; (2) worn or shifted balance weights on the vibratory drive shaft; or (3) uneven liner wear creating different friction zones. Start by redistributing the load evenly. If the problem persists, inspect the drive weights and liner condition. If you cannot identify the cause, contact our technical support team with your machine model and hours of operation.

Q: What spare parts should I keep in stock for my vibratory polishing machine?

We recommend keeping these consumables on hand: PU liner segments (or full liner kit), main drive bearings, motor bearings, drive belts (if belt-driven models), compound pump seals, and a spare drain bung. For machines with separators, also keep separator screen mesh and drive chain in stock. Contact us to request a recommended spare parts kit for your specific model.
