Views: 0 Author: Site Editor Publish Time: 2026-07-30 Origin: Site
Processing high-value, high-aspect-ratio metal parts like aerospace extrusions, threaded rods, and precision shafts carries significant risk. The financial cost of scrap, rework, and surface degradation escalates rapidly if these components sustain damage during mass finishing. A standard Tumbling Machine relies on kinetic energy to deburr, descale, or polish parts. This inherent mechanical action creates a direct conflict. The energy required to achieve the desired surface finish naturally increases the risk of part-on-part impingement, bending, and tangling when handling long components.
You cannot simply load oversized shafts into a standard rotary barrel and expect flawless results. Successfully processing long parts requires engineered protection strategies. These range from internal barrel modifications and custom fixturing to precise media selection and fluid dynamics control. Implementing these targeted solutions allows you to utilize a rotary barrel without compromising the final surface finish or dimensional integrity of your critical components.
Defining a successful finish for long parts goes beyond simple visual appeal. True success requires zero dimensional distortion along the entire length of the component. You must achieve uniform edge radiusing while preserving absolute concentricity. The final product must show a complete absence of impact marks, scratches, or rolled threads. Meeting these criteria demands strict control over the internal forces at play. Operators must evaluate the specific gravity of the media, the rotational velocity, and the exact fill level to ensure parts remain suspended rather than crashing against the steel walls.
When you pull a shaft from the barrel, you check it with a dial indicator. If runout exceeds your tolerance, the finishing process failed. We measure success by the preservation of the original machining tolerances combined with the required surface roughness (Ra) improvement. This requires a calculated approach to mass finishing rather than a dump-and-run mentality.
The cascade action inside a rotary barrel naturally forces components to cross paths. When processing long parts, this crossing creates severe impingement risks. Heavy parts strike each other during the downward slide, leading to deep scratches and thread damage. Furthermore, long components often interlock or nest together. This tangling halts the finishing process and causes concentrated wear spots where the parts rub against one another. Higher part weight and denser materials exponentially increase the severity of these impacts.
Consider a batch of 18-inch stainless steel threaded rods. If they cross paths at the bottom of the slide, the threads act like files against each other. You end up with flattened crests and ruined pitch diameters. Preventing this requires manipulating the media matrix to keep these rods parallel or completely isolated during the entire cycle.
Long, thin parts face immense mechanical stress when trapped under a shifting media mass. As the barrel rotates, the abrasive media exerts uneven pressure across the length of the component. This uneven load can easily induce torsional stress. Precision shafts are particularly vulnerable to permanent deformation. Aggressive tumbling cycles can introduce runout issues, rendering tight-tolerance components completely unusable.
The weight of ceramic media is substantial. A cubic foot can weigh over 100 pounds. When a long, slender aluminum extrusion gets pinned at the bottom of the barrel while the rest of the mass shifts over it, the extrusion acts as a lever. The resulting bending moment easily exceeds the yield strength of softer metals, causing a permanent bow.
The extreme ends of long parts bear the brunt of rotational impacts. Target crowns, delicate chamfers, and threaded tips frequently strike the barrel walls or other parts. Because these ends protrude, they act as primary contact points during the cascade. Even microscopic nicks at the edge of a bore or muzzle can ruin part performance. Such damage destroys concentric accuracy and compromises the functional integrity of the component.
When a long part rotates end-over-end, the velocity at the tip is much higher than at the center. This means the kinetic energy transferred during an impact at the tip is severe. Protecting these ends is not optional; it is a mandatory step in the process engineering phase.

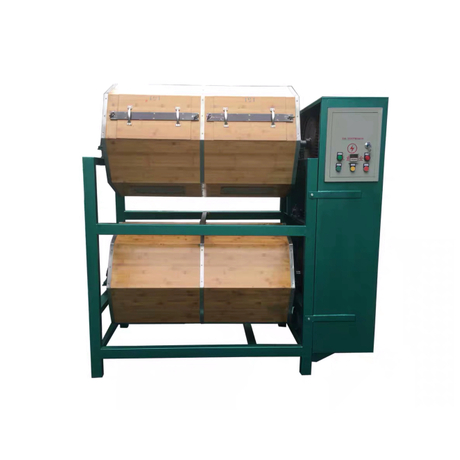

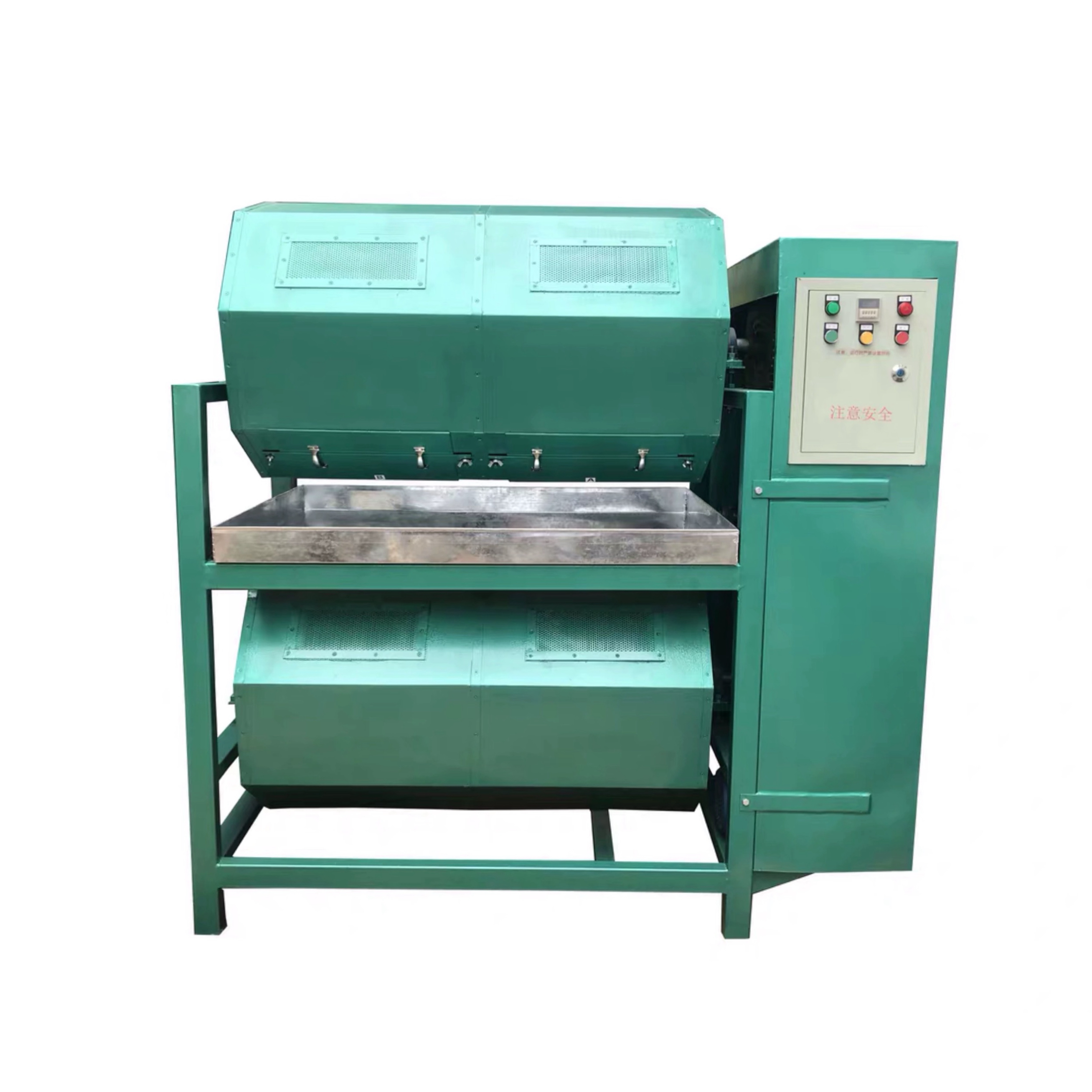

Standard open-ended barrels work well for small, uniform parts but fail miserably with long extrusions. Closed hexagonal barrels offer better tumbling action but still pose impingement risks. Specialized long-radius barrels provide the necessary internal space to allow long parts to slide naturally without jamming against the end walls. Choosing the right configuration dictates the success of your finishing operation.
You have to match the machine geometry to the part geometry. A short, wide barrel forces long parts to tumble end-over-end, which is disastrous. A long, narrow barrel allows parts to roll along their longitudinal axis, which is exactly what you want for shafts and extrusions.
Proper sizing prevents jamming and ensures uniform wear. The standard engineering formula dictates that the internal length of the barrel must exceed the longest part by a minimum of 20 to 30 percent. This extra clearance allows proper media flow around the ends of the components. When sizing a large barrel finishing machine, you must also consider the tilt. Horizontal configurations offer maximum length capacity, while tilted barrels provide easier unloading but restrict the maximum part length due to the angled cascade.
If you try to process a 36-inch part in a 40-inch barrel, the media cannot circulate around the ends. The ends will remain raw and burred while the center gets over-processed. Always measure the diagonal clearance of the barrel, not just the straight wall length, to ensure parts can rotate freely without wedging.
Bare metal walls destroy delicate parts. Internal linings are non-negotiable. Polyurethane linings offer exceptional wear resistance and smooth media flow. Ribbed rubber linings provide aggressive tumbling action but can sometimes catch the edges of long parts. The thickness and durometer (hardness) of the lining directly correlate to energy absorption. Softer, thicker linings cushion impacts effectively, protecting fragile components from the rigid steel shell.
We typically specify a minimum of 1-inch thick, 85-durometer polyurethane for long part processing. This provides enough give to absorb a direct hit from a heavy shaft without tearing the lining or denting the part. Inspect linings weekly; a worn spot exposing bare steel will ruin a batch instantly.
Creating individual chambers within a single rotating barrel tumbling machine solves impingement entirely. Custom internal dividers isolate each long part. This compartmentalization guarantees zero part-on-part contact. While this method limits overall batch throughput, it virtually eliminates scrap rates for high-value components.
Dividers can be made from high-density polyethylene (HDPE) or polyurethane-coated steel. They must be securely bolted to the barrel frame to withstand the shifting weight of the media. When you compartmentalize, you transform a mass finishing process into a highly controlled, parallel finishing operation.
| Barrel Type | Impingement Risk | Throughput | Best Application |
|---|---|---|---|
| Standard Hexagonal | High | High | Short, durable bulk parts |
| Long-Radius Horizontal | Medium | Medium | Thick shafts, heavy extrusions |
| Compartmentalized | Zero | Low | High-value precision aerospace parts |
| Tilted Open-End | Very High | High | Not recommended for long parts |
You must assess the operational impact of fixturing versus free-floating methods. Fixturing requires upfront design costs and increases load/unload times. Free-floating is faster but carries higher scrap risks. Balancing labor costs against scrap reduction is vital for operational efficiency.
Every handling step adds time. If an operator spends ten minutes bolting parts into a fixture, that time must be recovered through zero-defect finishing. Free-floating requires less handling but demands strict adherence to media ratios and speed controls to prevent disasters.
Designing custom fixtures locks long parts in place along the central axis of the barrel. The media flows over the stationary parts, providing abrasive action without part-on-part contact. This yields an excellent return on investment for delicate items. However, loading and unloading fixtured parts is labor-intensive. Contrast this with bulk free-floating, which is fast but requires massive media volumes to keep parts separated.
Safeguarding delicate ends requires physical barriers. Heavy-duty vinyl caps stretch over threaded tips to absorb impacts. Threaded silicone plugs protect internal bores from media lodging. Specialized rubber sleeves can cover entire muzzle crowns. You must evaluate the balance between the manual labor required to apply this masking and the resulting reduction in scrap rates.
Do not use cheap masking tape; the tumbling fluid and abrasive action will strip it off in minutes. Invest in reusable, molded silicone caps. They withstand the chemical compounds and the mechanical abrasion, paying for themselves after just a few cycles.
Media geometry plays a critical role in part protection. Angle-cut cylinders and triangles prevent lodging in long slotted parts. High-density ceramic media creates a fluid-like bed inside the barrel. This dense matrix suspends long parts, preventing them from sinking and hitting the barrel walls. The right abrasive acts as both a cutting tool and a protective cushion.
If you use a lightweight plastic media for a heavy steel shaft, the shaft will sink to the bottom and drag against the lining. You must match the bulk density of the media to the specific gravity of the parts to achieve true suspension during the cascade.
Standard processing often uses a 3:1 media-to-part ratio. Long, fragile parts require a drastic shift. You must increase this to a 6:1 or even 10:1 ratio in a metal parts tumbling machine. This high volume of media dilutes the part concentration, drastically reducing the chance of collisions. Higher media consumption and longer cycle times do increase costs, but they guarantee part safety.
When you load the barrel, fill it to 60% capacity with media first. Then introduce the parts, ensuring they are evenly distributed. Top off with the remaining media to reach the optimal 70-75% total barrel fill level. This prevents parts from riding on top of the mass and striking each other.
Adjusting machine parameters directly impacts both part safety and operational efficiency. You cannot run long parts at the same speeds used for small hardware. Fluid dynamics and rotational velocity must be tightly controlled.
Water levels and compound concentrations change the viscosity of the mass. A wetter mass slides faster; a drier mass carries parts higher up the barrel wall before they cascade. You must dial in these variables to maintain a gentle, continuous slide.
Every rotary barrel has a critical speed where centrifugal force pins the mass to the walls. Processing long parts requires operating well below this threshold. A slower, sliding cascade minimizes impact energy. Instead of parts plunging violently down the slope, they glide gently through the abrasive matrix. This slow speed maintains necessary abrasive action while preventing catastrophic bending.
We typically run long parts at 40% to 50% of critical speed. If you hear loud clanking, the speed is too high, and parts are breaking through the media bed. The sound should be a consistent, muffled rushing noise, indicating a smooth slide.
Understanding internal media behavior requires visual validation. Using high-speed imaging during trial runs reveals exactly how parts interact. You can identify dead zones where parts stagnate or aggressive impact zones where damage occurs. Clear-walled test barrels allow operators to fine-tune RPM and media levels before committing to full production runs.
Recording a test run at 120 frames per second allows you to see if long parts are turning parallel to the axis or tumbling end-over-end. If they tumble end-over-end, you must increase the media volume or reduce the RPM immediately.
Liquid tumbling compounds reduce surface friction and cushion impacts between parts and media. They flush away metal fines that could scratch surfaces. However, wet-tumbling introduces the critical risk of post-tumble flash rusting on long steel parts. You must integrate synthetic rust inhibitors and water-soluble oils into the final rinse cycle. This step protects raw, deburred metal surfaces during long-term storage.
Do not let wet steel parts sit in a stationary barrel. The moment the cycle ends, initiate the rinse and unload process. Apply a water-displacing rust preventative immediately. Flash rust can form in minutes on freshly deburred high-carbon steel.
Modifying tumbling processes for oversized parts introduces physical and regulatory hazards. Handling heavy, awkward extrusions requires strict adherence to safety protocols to protect operators and equipment.
Long parts act as levers and can easily pinch fingers or crush hands during loading. Operators must use mechanical hoists or team-lift techniques for parts exceeding 40 pounds. Safety is a continuous operational requirement, not a one-time checklist.
Standard safety compliance dictates that revolving barrels, containers, and drums must be guarded. You must install an enclosure interlocked with the drive mechanism. This prevents operation when the guard is open. Designing these interlocked barrier guards to accommodate the loading of extremely long, cumbersome parts requires careful engineering to maintain compliance without hindering workflow.
Light curtains are often a better solution than physical gates for long-part machines. They allow operators to maneuver long extrusions into the barrel without fighting a swinging door, while still instantly cutting power if a person enters the hazard zone during operation.
Operating large finishing equipment is inherently high-risk. Strict safety policies must prohibit loose clothing, dangling jewelry, or unrestrained long hair near rotating spindles and drive shafts. Operators must wear required PPE. This includes heavy-duty non-skid footwear, protective eyewear, and cut-resistant gloves for safely handling sharp, long metal extrusions.
When handling parts covered in tumbling compound, grip strength is compromised. Specify gloves with nitrile or polyurethane palm coatings to ensure a secure hold on slippery, heavy shafts during the unloading phase.
Heavy, long parts can shift unevenly inside the barrel, creating eccentric loading. This imbalance strains the drive mechanism and causes premature bearing failure. Mitigation strategies include utilizing Variable Frequency Drives (VFDs) for soft starts and stops. Installing heavy-duty bearings and employing counterweighting techniques ensures smooth operation and extends equipment lifespan.
A VFD allows you to ramp up the speed over 10 to 15 seconds. This prevents the massive torque spike that occurs when starting a heavy, unbalanced load across the line. It protects the gearbox, the belts, and the motor from catastrophic failure.
A: Long parts bend due to uneven pressure from the shifting media mass. When trapped under heavy media, the rotational force applies torsional stress, causing permanent deformation and runout issues in precision shafts.
A: While standard parts use a 3:1 ratio, long and fragile components require a 6:1 to 10:1 media-to-part ratio. This creates a dense suspension matrix that prevents part-on-part impingement.
A: You should use heavy-duty vinyl caps, specialized rubber sleeves, or threaded silicone plugs. These physical barriers absorb impacts and prevent media from damaging delicate threads or internal bores.
A: A slower speed increases cycle time but ensures a gentle sliding cascade. This minimizes destructive impact energy while still maintaining consistent abrasive action, which is critical for protecting long parts.
A: You must immediately follow the wet-tumbling process with a corrosion-inhibition cycle. Integrating synthetic rust inhibitors into the final rinse protects the fresh, highly active metal surfaces during storage.
A: OSHA requires that revolving barrels be fully guarded by an enclosure interlocked with the drive mechanism. The machine must not operate while the guard is open, even when modified for oversized parts.
